Tune the speakers once, and find them that way next time.

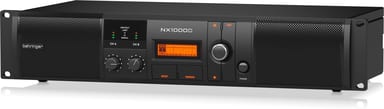

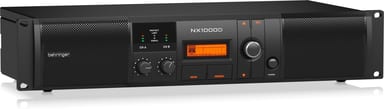

Friday a wedding, Saturday a club, and the same pair of speakers each time. The NX1000D builds the DSP into the amplifier, and the whole unit weighs 3.4 kg.
Dial in the system at the front panel
PROCESS steps through the DSP modules, and the LCD shows each module and its settings. Per channel, you get 8-band parametric EQ and a delay of 0 to 300 ms. The crossover offers 3 filter types, up to 48 dB/octave.
EQ that reacts to the music
On the DEQ screen, deploy up to 2 dynamic EQ modules per stereo channel. Each one monitors a frequency range you choose. It boosts or cuts that range based on your gain threshold, with ratio, attack and release to program. If the red LIMIT LED lights up continuously, reduce the input gain.
Your settings stay put
The DSP stores recent changes after two minutes, or when you press EXIT to the main screen. They are there the next time you power on. Keep up to 19 user-definable presets. From a computer, adjust the parameters over USB with DSP control software from behringer.com.
