Personal mixes for up to eight players from one feed.
The drummer wants more bass. The singer wants less guitar. On a P16-HQ personal mixer, each musician adjusts every channel of their own mix. The P16-D takes one ULTRANET feed and shares it with all of them.
Sixteen channels down every cable

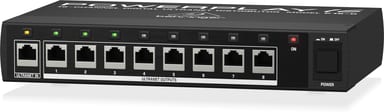

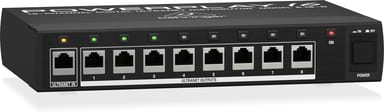

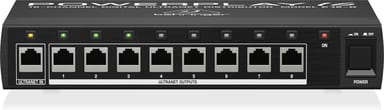

Connect your ULTRANET source, such as an X32, MR18 or P24HUB, to ULTRANET IN using shielded CAT5e cable. Each of the eight ULTRANET OUTPUTS sends 16 channels to a P16-HQ or P16-M mixer, or to another P16-D. Keep each cable within 75 m.
Power for the mixers from one mains cable
Connect the P16-D to a power outlet with the included IEC cable, and it powers the P16-HQ mixers too. No additional wall adapters are needed.
Check every link at a glance
LEDs above each ULTRANET connector light up to show connectivity and signal. The hub weighs 1.1 kg.
