PM1

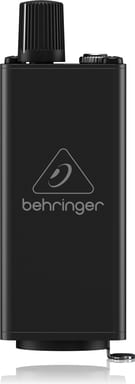

Passive belt pack for personal monitoring, with a locking XLR input, volume knob and stereo mini-jack headphone output

Händler finden PM1 (0609-AAF)

Your monitor mix, clipped to your belt.

Mid-song, your monitor mix is too quiet and the engineer is busy. The PM1 takes a stereo personal monitor mix on a locking XLR input. Its volume knob sits at your waist, so the level is yours to set.

Fed from a headphone amplifier

Send the signal from a stereo headphone amplifier using a TRS-to-XLR cable. A dual TS-to-XLR cable can also bring a stereo signal from two separate outputs or a pair of aux sends. The XLR input is not meant for balanced line signals.

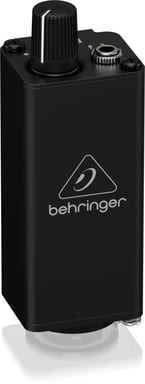

PM1, image 2 of 3

Hands free on stage

The belt clip attaches to a belt or waistline, and the PM1 weighs 80 g. Plug in headphones of 32 to 600 Ohm with a stereo mini jack. Press the release tab to unplug the XLR cable.

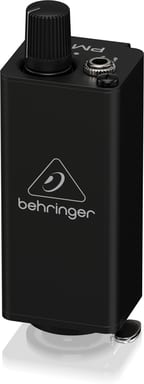

PM1, image 3 of 3
