Turn up your own mix without waving at the desk.

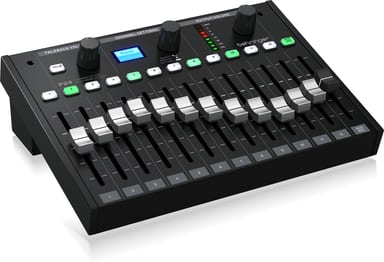

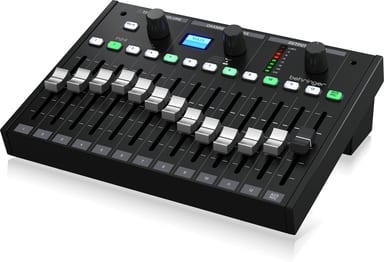

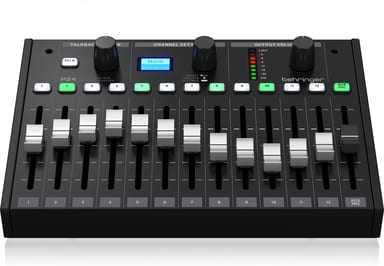

"I need more me." "The vocal is too loud." Every engineer knows those looks from the stage. The P24 hands that mix to the musician, with 60 mm faders for each channel. You set your own balance, and the engineer gets back to the room.
Your balance, channel by channel

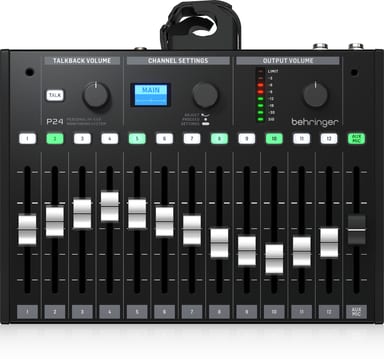

Channel buttons light green when audio passes and red when it clips. Select one to set its balance, a ±12 dB tilt EQ and its send to the onboard reverb. Pair two channels as stereo, mono or dual. Dual suits a bass drum and snare on adjacent channels.
Hear the room, talk to the band

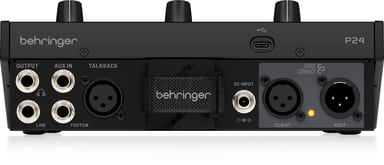

Two internal microphones can feed talkback, or bring the room sound into your in-ears for a more natural mix. Hold TALK to speak to the P24HUB or the previous P24 in the chain. An external mic can plug into the TALKBACK XLR connector. A momentary footswitch on the FOOTSW port also activates talkback.
Peaks held back, power passed on
A limiter after the volume control, with a threshold from 0 to -20 dB, guards against sudden peaks. The headphone amplifier also suits low-impedance headphones and in-ears. Power arrives over StageConnect and passes on to the next P24. A mono line output can feed an active wedge.
