Three decks, two tempos on screen.

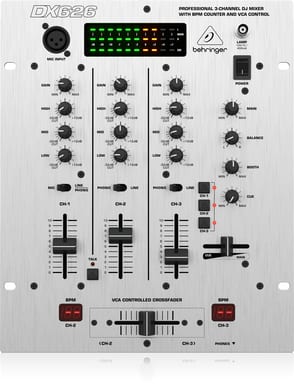

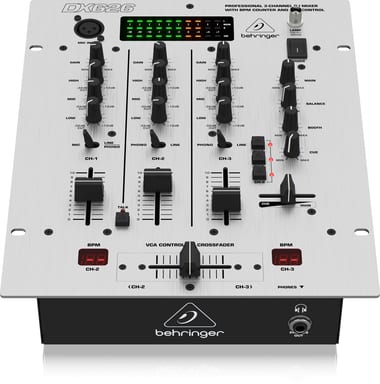

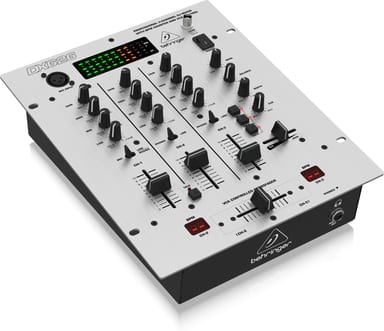

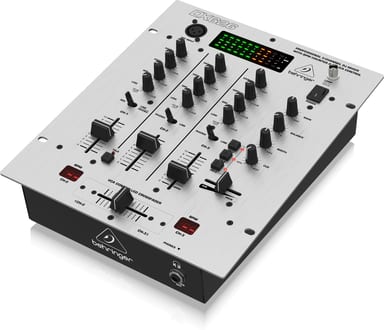

Your set runs on turntables and CD players, and the next track has to land in time. Two BPM displays show the tempo of channels 2 and 3. The VCA-controlled crossfader moves between those two channels. Channel 1 switches between your microphone and a line or phono source.
Fade a frequency out of the track
Each channel has a 3-band EQ (HIGH, MID and LOW) with kill characteristic. It cuts much further than it boosts: down to -32 dB, up to +12 dB. Take the bass out of one track while the next one rolls in.
Speak over the music
Your dynamic microphone plugs into a balanced XLR input. Press TALK and the other channels are lowered, by 16 dB in the specifications. Your announcement comes through clearly without touching a fader.
Cue it, then send it

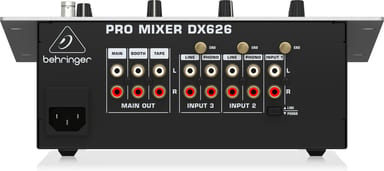

Buttons CH-1, CH-2 and CH-3 choose what you hear in your headphones: one channel or all three. The MASTER/CUE fader balances the channels against the MASTER signal. A BOOTH output with its own control feeds monitor speakers. A TAPE output records your set.
