Spread one guitar across two amplifiers.
Play a clean chord and let it widen as the chorus moves between two amps. This pedal is built around that sound. It offers BBD chorus and vibrato in the vintage ’70s style, with a wide 3D stereo effect.
Chorus or vibrato, under your foot

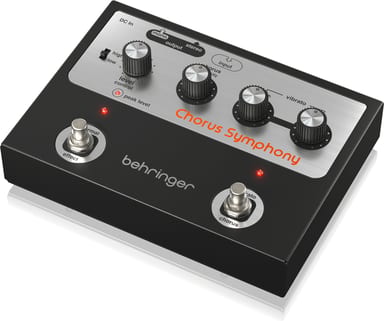

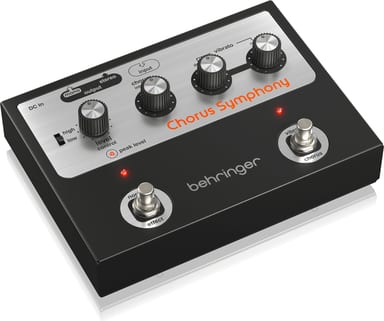

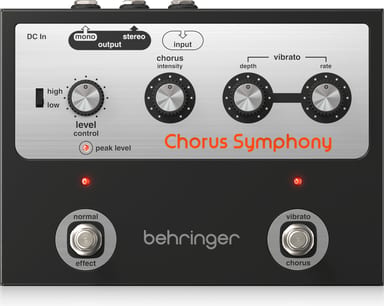

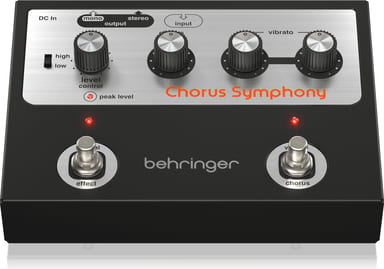

NORMAL/EFFECT turns the effect on and off. VIBRATO/CHORUS switches between the two. The LED above it blinks rapidly for vibrato and slowly for chorus. CHORUS INTENSITY sets the depth and amount of chorus, and does not work in vibrato. DEPTH sets the volume difference between the high and low points of the vibrato. RATE sets its speed.
Set the level for your instrument
Turn LEVEL CONTROL clockwise until the PEAK LEVEL LED glows occasionally. If it will not light, move the HIGH/LOW switch to HIGH for more input sensitivity.
Stereo rig or single amp

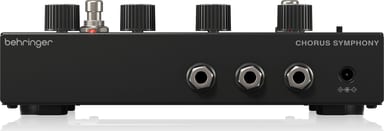

With two amplifiers in stereo, use both the MONO and STEREO outputs. With one amplifier, use the MONO jack only. An internal slide switch selects true bypass or buffered bypass. Buffered bypass compensates for highs lost over long cable runs, with a small loss of overall volume. Power comes from a standard 9 V, 300 mA supply, not included.
