Sweep the filter with your foot.
A wah turns one held note into a moving voice. Rock the pedal and its filter sweeps through the frequency spectrum, from 500 Hz to 2 kHz. You hear the characteristic wah sound, with ’60s voicing.
Press forward to switch it in

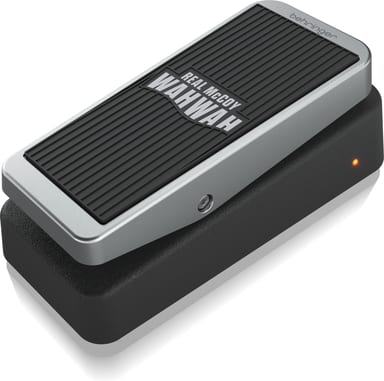

Press the pedal forward to turn the wah effect on or off. The EFFECT LED lights while the wah is active. When it is off, the bypass type is true bypass.
In front of your fuzz and overdrive

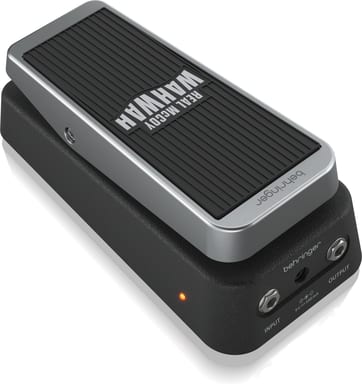

The hook-up example runs the WAHWAH into fuzz and overdrive pedals, then on to an amplifier. OUTPUT sends your signal to a guitar amp or to other pedals over instrument cables with ¼" TS connectors.
A standard supply or one 9 V battery

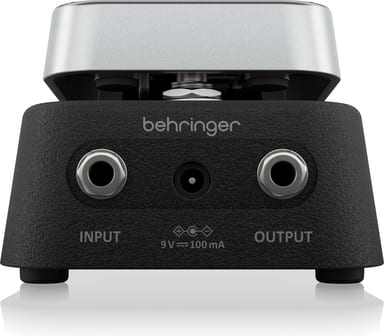

Connect a standard 9 V power supply (not included) to DC IN. Or loosen the rear screws until the backplate swings open, and clip in a single 9 V battery.
