Start with the factory wiring, then break it.

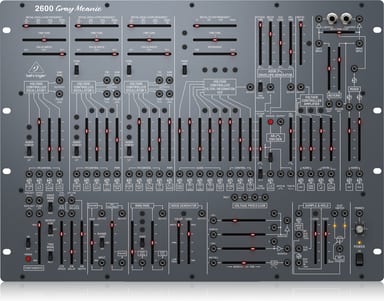

A blank modular panel can stop an idea before it starts. Here the modules come pre-wired at the factory, and the panel printing shows each connection. Plug a 3.5 mm cable into the input above a labelled box, and that pre-wired connection is disconnected. Your patch takes over.
Three oscillators that lock together
Sync VCO 2 and VCO 3 to VCO 1, and they act as a single large oscillator for complex sounds. Switch a VCO to LF and it runs as a low-frequency oscillator. By default, the ring modulator combines VCO 1 sawtooth and VCO 2 sine.
Two filter characters, one switch
The MODE switch chooses between two classic filter circuits. At MAX, RESONANCE makes the filter ring in response to sharp pulses. The envelope follower turns the average level of an outside signal into a control voltage.
A real spring at the end of the mix
The Mixer feeds a real, on-board spring reverb through a pre-wired connection. PAN places the signal in the stereo field. The stereo outputs have parallel ¼" and 3.5 mm jacks. Play it from a MIDI keyboard over the 5-pin MIDI IN or USB, in MONO or DUO voice mode.
