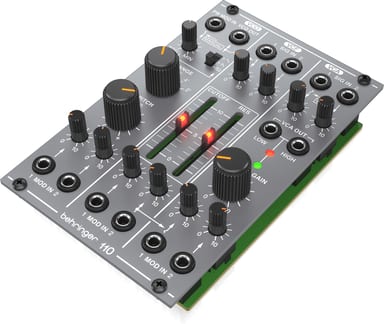

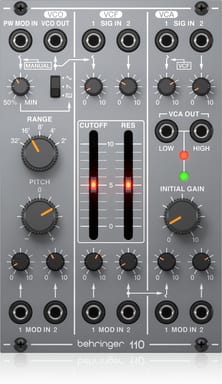

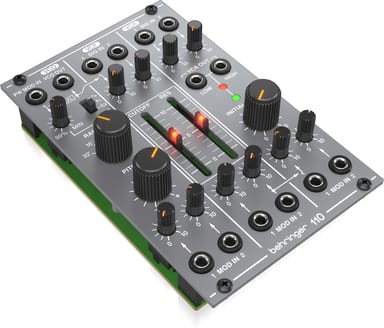

Oscillator, filter and amplifier in one module.
A new Eurorack case fills quickly, and every module costs space and power. The 110 puts a VCO, a low-pass VCF and a VCA into 16 HP. The power cable and mounting screws come with it.
An oscillator with reach
WAVEFORM selects triangle, sawtooth or pulse. RANGE moves the pitch in octave steps from 32’ to 2’, and PITCH fine-tunes it. The VCO mod input takes 0 V to +10 V at 1 V/oct. With external CV, the VCO runs from below 1 Hz to 30 kHz.
A filter that can sing on its own
CUTOFF FREQ sets the low-pass filter anywhere from 20 Hz to 20 kHz. RES boosts the resonance and can push the VCF into oscillation. Four signal inputs bring sounds into the VCF and VCA, and SIG LEVEL sets their level.
Shape the level, then patch it out
INITIAL GAIN sets the initial gain level when no control voltage is present. Its LEDs show signal in green and overload in red. MOD IN jacks accept voltages that modulate the VCO, VCF or VCA. VCA OUT sends a high or a low signal level.
