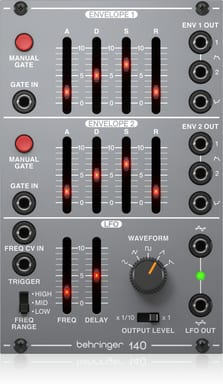

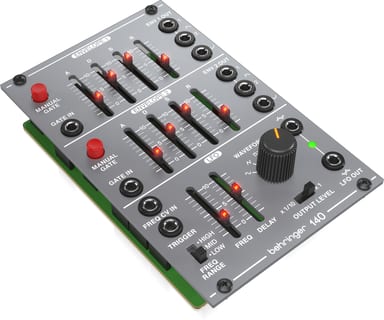

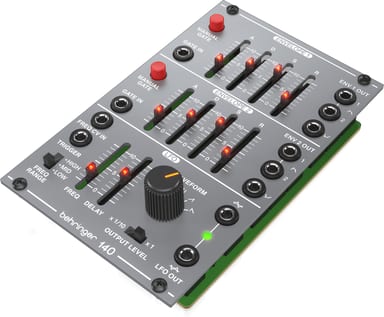

One module, two kinds of movement.
A held note from a bare oscillator stays flat from start to finish. The 140 gives your patch motion. Its envelope shapes each note from a gate, and its LFO keeps the sound moving.
Shape every note
Patch a gate into EXT GATE, or press and hold MANUAL GATE to start the envelope cycle. Attack runs from 1.5 ms to 7.5 s. Decay and release each run from 4 ms to 15 s. ENV OUTPUTS send up to two positive waveforms and one negative.
An LFO that can wait
Choose sine, triangle, pulse, sawtooth or reverse sawtooth. FREQ RANGE sets one of three ranges, from 0.05 Hz to 30 Hz. A trigger turns the LFO off until the end of the trigger cycle. DELAY sets the time from receiving the trigger until the LFO starts again, from 0 to 7 s. FREQ CV IN follows an external voltage at 1 V/octave.
Ready for your case
The module is 16 HP wide and draws 40 mA from each rail. The LFO OUT jacks give a non-inverting and an inverting output. Power cable and mounting screws are included.
