Give a static patch somewhere to move.

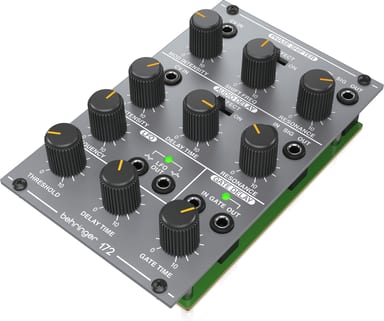

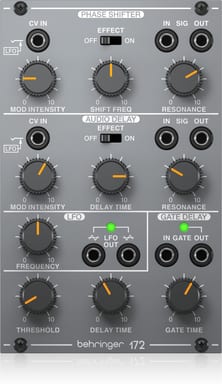

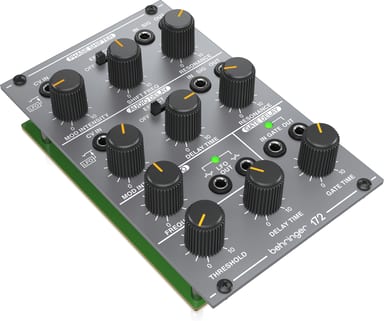

A drone that never changes. A sequence that repeats the same way every bar. This module gives them motion. It holds a phase shifter, an audio delay, an LFO and a gate delay in a 16 HP panel.
Sweep the phase, stretch the delay
SHIFT FREQ sets the phase shifter frequency from 200 Hz to 8 kHz. DELAY TIME sets the audio delay from 1 ms to 7 ms. RESONANCE feeds signal back through the effect. MOD INTENSITY sets how much the LFO or an external CV modulates it. With no jack in CV IN, the LFO can modulate the effect.
Send modulation to the rest of the case
LFO OUT sends a triangle and an inverted triangle wave, from 0.02 Hz to 10 Hz. GATE IN accepts a gate signal, and THRESHOLD sets the voltage needed to trigger it. GATE OUT sends the gate delay signal, and GATE TIME sets its length. Gate delay time runs from 0.3 ms to 6 s.
Ready to mount
The module comes with the power cable for a standard Eurorack power supply, and the mounting screws are included. It draws 60 mA from each of the +12 V and -12 V rails.
