Where your patch becomes a mix.

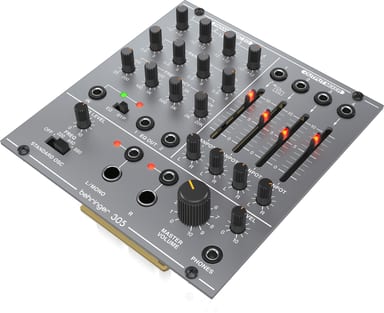

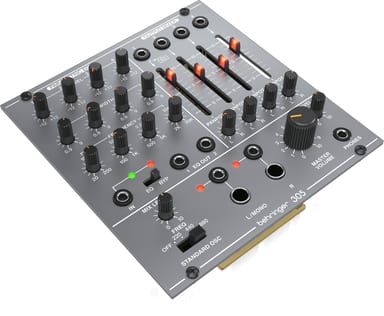

Your modules make the sounds. Sooner or later they need shaping, mixing and a way out of the case. This 24 HP module handles all three at the end of your patch.

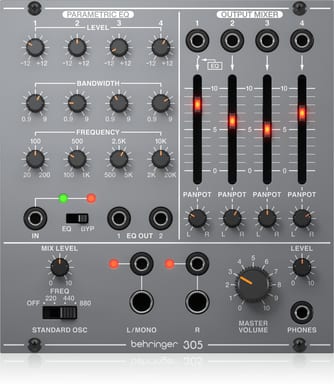

Four bands of parametric EQ
LEVEL knobs cut or boost each band by up to 12 dB. FREQUENCY knobs move each filter. BANDWIDTH sets how narrow the curve is. The low bands cover 20 Hz to 200 Hz and 100 Hz to 1 kHz. The high bands cover 500 Hz to 5 kHz and 2 kHz to 20 kHz. EQ/BYP switches the circuit in or out.
Four channels into stereo
VOLUME SLIDERS give each input channel independent volume control. PANPOT knobs place each channel in the stereo field. Channel 1 is pre-wired from the EQ output. Insert a cable into MIXER INPUT 1 and your own signal replaces it.
Out to headphones and beyond
MASTER OUTPUTS send the final mix left and right on 3.5 mm or ¼" jacks, or mono from L/MONO. PHONES has its own LEVEL knob. The FREQ switch adds an onboard oscillator at 220, 440 or 880 Hz, blended in with MIX LEVEL. The power cable and mounting screws are included.
