Eight stages laid out under your fingers.

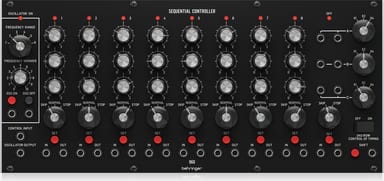

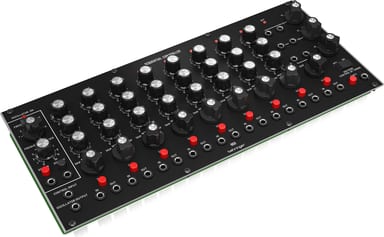

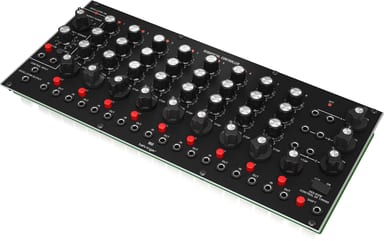

A modular patch comes alive when a voltage starts to move in a pattern. This 56 HP module spreads that pattern across 8 stages and 3 output rows. A voltage control sets each stage, and an LED lights on the stage that is active.
Decide what every stage does
In Normal mode a stage runs its cycle and moves on. Skip bypasses it, and Stop ends the sequence. Switch 3RD ROW TIMING on, and each stage's third knob lengthens or shortens its duration. The outputs can be scaled by a factor of 1, 2 or 4.
An oscillator you can play with voltage
Set the broad range of the built-in oscillator, then fine-tune it with the vernier. Start and stop it with the OSC ON and OFF buttons, or with external gate signals. The 1 V/oct CONTROL INPUT takes voltage from another module to control its frequency.
Triggers in, triggers out
Every stage has a trigger IN and OUT on 3.5 mm jacks. An external trigger can activate any stage, and SHIFT controls the shifting from an external source or the button. Add a 962 sequential switch module to select between the 3 rows for a 24-stage sequence.
