Two filters that can play off each other.

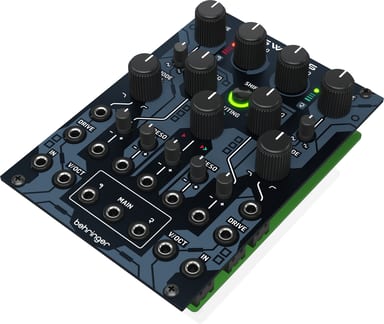

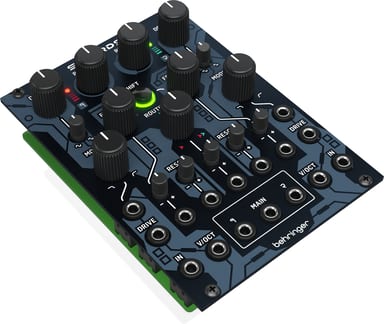

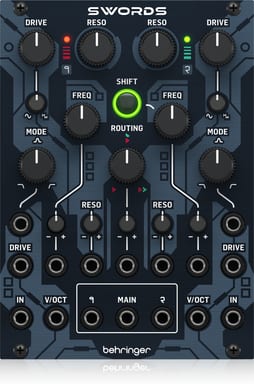

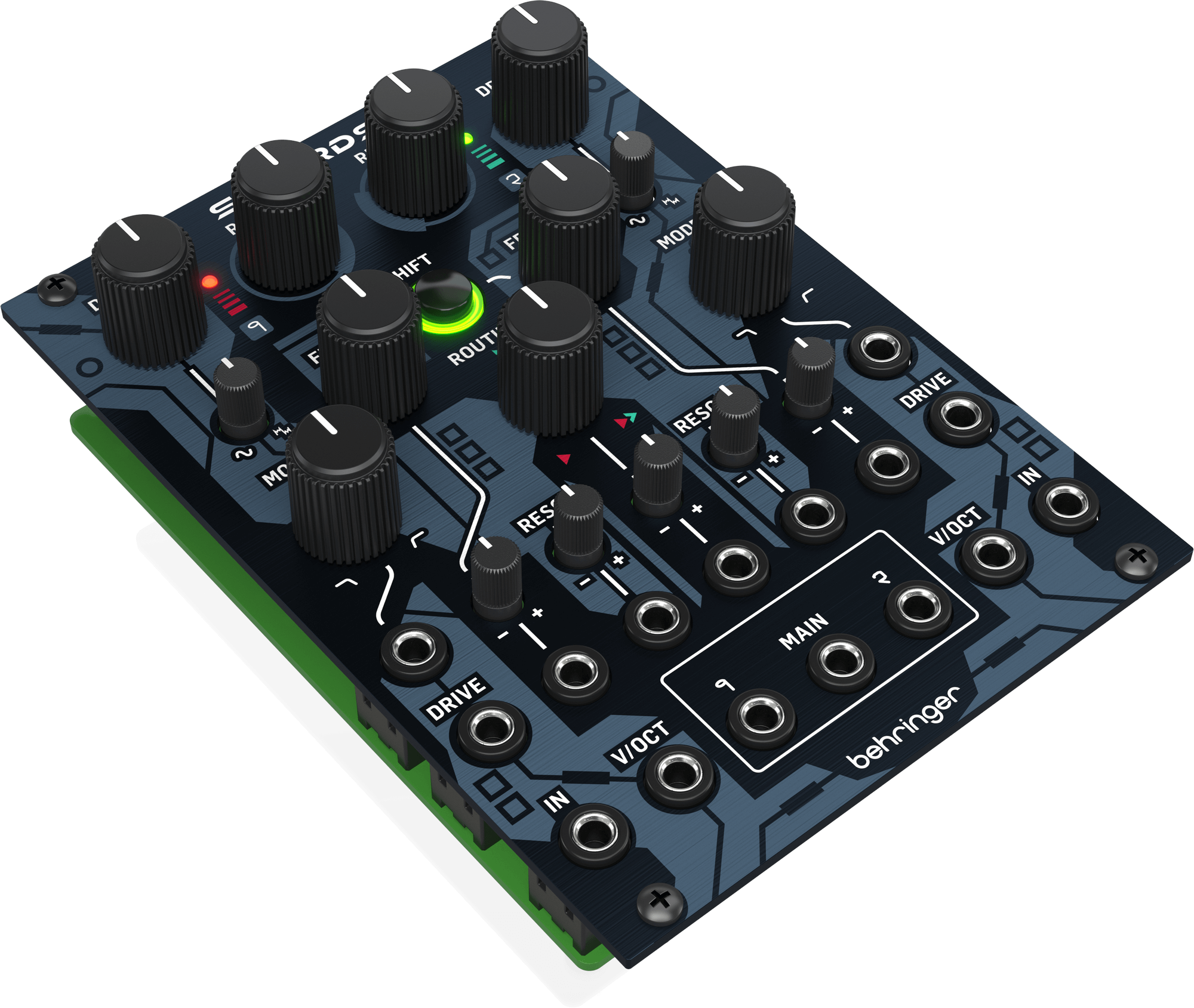

A filter often just sits after the oscillator. SWORDS is a dual analogue multi-mode filter. Turn one of its filters into a sine source with self-oscillation, then feed it into the other.
Low pass to high pass on one control
Each MODE control moves continuously from low pass through band pass to high pass. The MODE CV sockets take an external CV source to control the filter mode. At high levels, RESO makes the filter self-oscillate.
Drive that clips or folds
The DRIVE controls set the drive level on the input signal. RESPONSE turns that drive from soft clipping towards wavefolding. Patch an external CV into DRIVE CV to control it from your patch.
Route, couple and track
With inputs patched to both filters, ROUTING sets how much of each filter output reaches the main output. SHIFT couples the cutoff of filter 2 to filter 1. The V/OCT sockets track the filter from an external 1 V/octave controller. Filter 1, filter 2 and the main mix each have an output.
