Send each speaker only the band it should play.

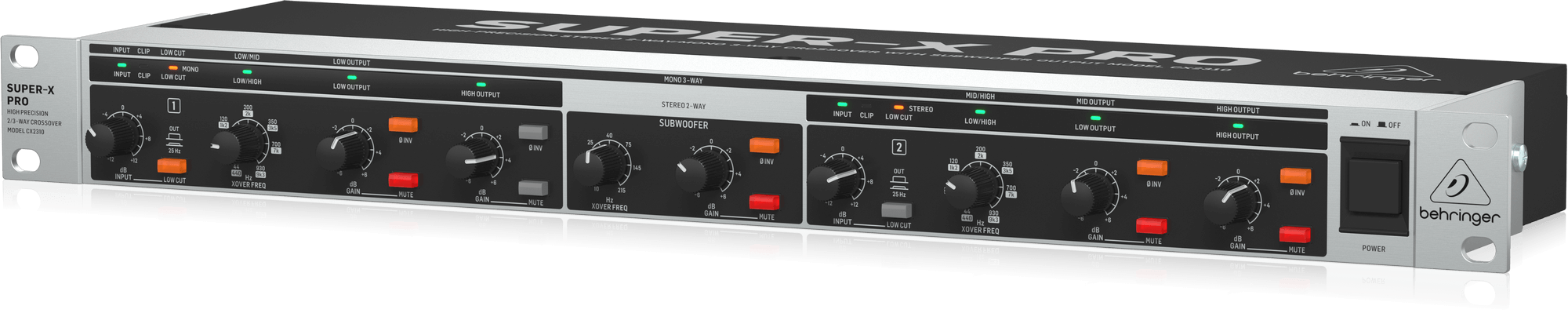

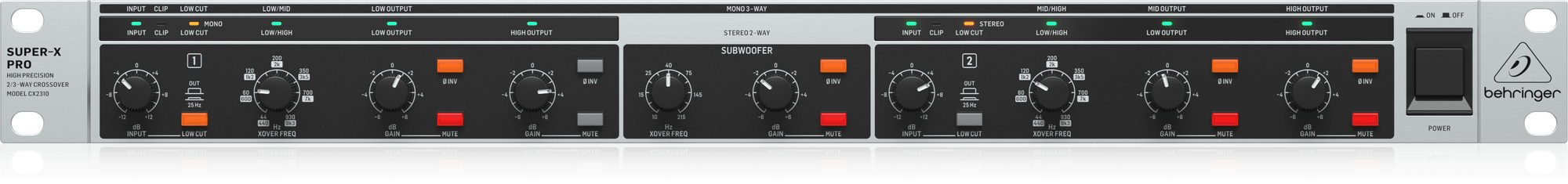

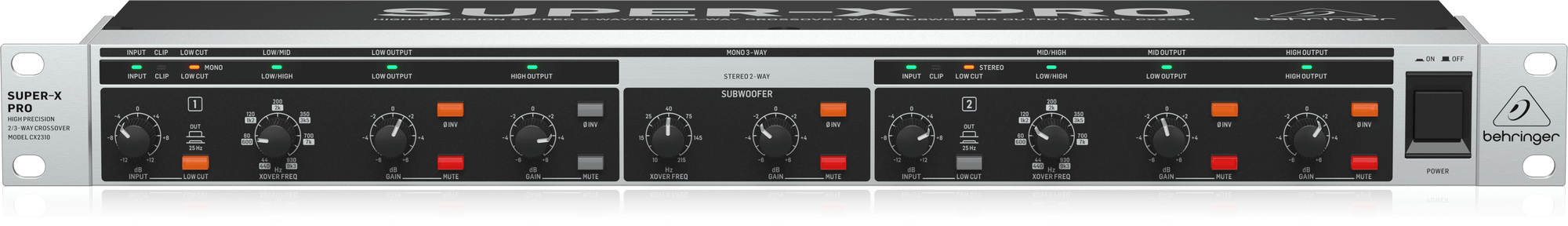

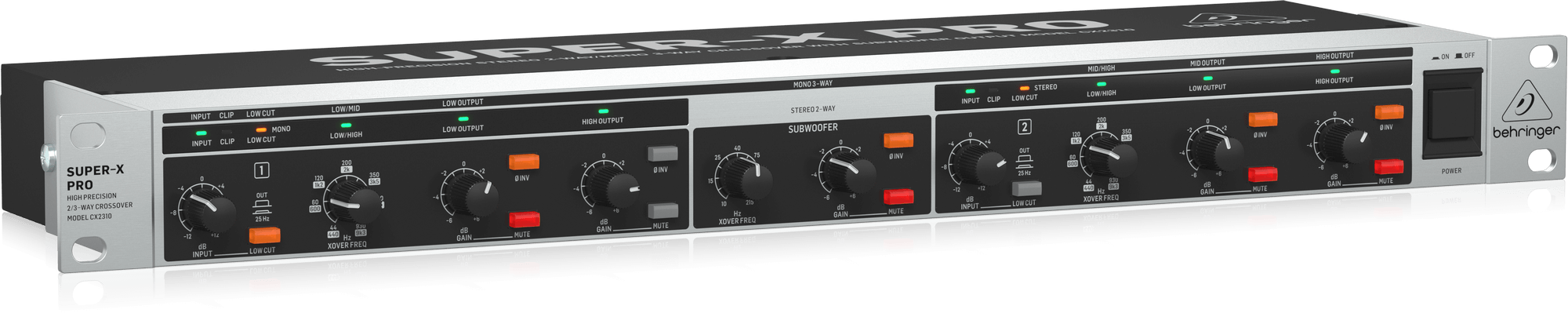

Tops, subwoofer and mixer all have to agree on where the low end belongs. The CX2310 V2 divides your signal into bands, each on its own balanced XLR output. A mono subwoofer output stays available in stereo and mono mode.
Two ways in stereo, three in mono

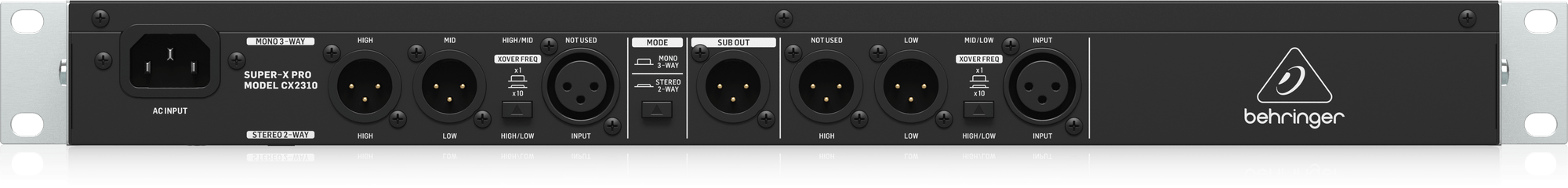

In stereo mode, each channel splits into low and high. Release the MODE switch on the rear panel for mono 3-way operation, with low, mid and high outputs.
Steep filters, wide ranges
Linkwitz-Riley filters with 24 dB/octave slopes divide the bands. A range switch sets each crossover control to 44 to 930 Hz or 440 Hz to 9.3 kHz. A separate control sets the crossover between the low signal and the subwoofer.
Protect the drivers, match the levels
Switch in the 25 Hz low cut, at 12 dB/octave, to protect your bass loudspeaker. Each band, low, mid or high, has its own output level from -6 to +6 dB. Each also has phase invert and mute switches.
