Nine faders between your mixer and the room.

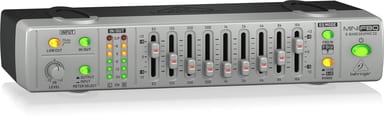

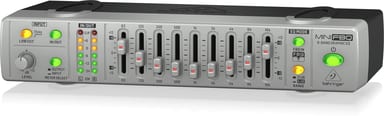

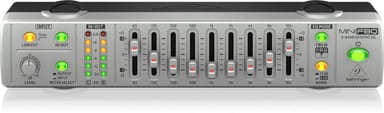

You set up in a small venue and the first song starts to ring. The floor rumbles under the bass. This compact stereo equaliser sits in the signal path and gives you nine bands to correct the room.
FBQ shows you where to cut
Press FBQ IN. If the level is high in a band, its fader LED lights brightly and the other fader LEDs dim. Cut that band to reduce the potential for feedback. When the FBQ Feedback Detection System is not activated, all fader LEDs light with the same brightness.
Clear the rumble first
Press LOW CUT to remove sounds below 75 Hz, such as floor rumble, room resonance and mains hum. RANGE sets the faders to ±6 dB or ±12 dB. LEVEL sets the input from -12 dB to +12 dB.
Check the meter, then connect

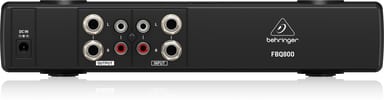

METER SELECT switches the stereo meter between the input and the output signal. Its scale runs from -24 dB to +6 dB, with a CLIP LED. Inputs take ¼" TRS (balanced) or TS plugs, or RCA plugs. Outputs are ¼" TS and RCA. The external power supply is included.
