Your monitor level, within reach.

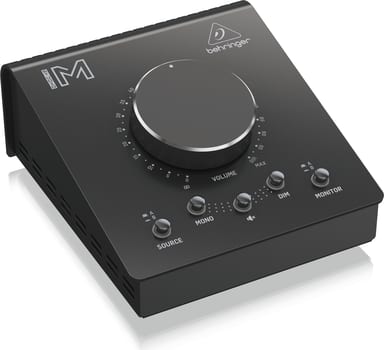

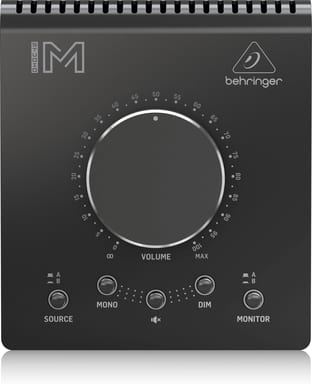

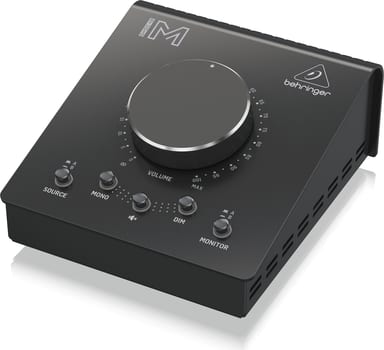

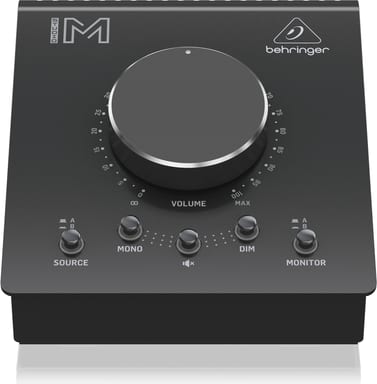

Mixing is easier when volume, speakers and sources sit under one hand. STUDIO M is a passive studio controller that gathers them in a unit 137 mm wide.
Two sources, two pairs of speakers

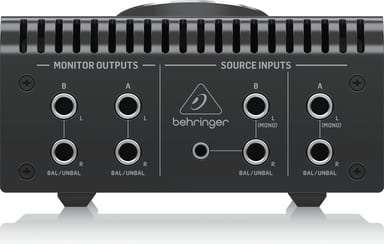

SOURCE A and SOURCE B take balanced or unbalanced line level signals, such as your sound card. SOURCE A/B picks the one you hear. MONITOR A/B selects the A or B outputs. Hear the mix on a second pair of speakers.
Mono, mute and dim
MONO sums the stereo signal to mono at the MONITOR A and B outputs. MUTE silences them. DIM lowers them by 20 dB.
Flat from 20 Hz to 20 kHz
Frequency response is 20 Hz to 20 kHz within ±0.5 dB. All inputs take up to +22 dBu. MONITOR A and MONITOR B are balanced or unbalanced line level outputs. The VOLUME CONTROL sets the level sent to the monitor outputs.
