Full-range sound where space is short.
Some gigs happen in a café corner, a function room or a small bar. The B212XL was designed for applications in which space is a problem. Its compact dimensions, low weight and wall-mount option make it flexible to place.
Aim the highs above the audience
A titanium compression driver handles the highs, with a crossover at 1.9 kHz. The frequency range runs from 65 Hz to 18 kHz, with 90° x 60° dispersion. The manual recommends placing the HF driver slightly above the height of the audience.
Run a second speaker from the first

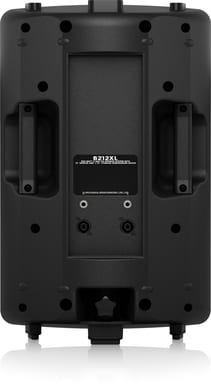

Two professional speaker connectors are wired in parallel, and so are two ¼" inputs. Connect one to your power amp and feed an additional loudspeaker from the other. The speaker connectors lock into place, so they cannot accidentally disconnect. Impedance is 8 Ω.
Size and weight
The cabinet measures approx. 550 x 345 x 270 mm and weighs approx. 10.9 kg.
