Take the mix from the desk to the room.

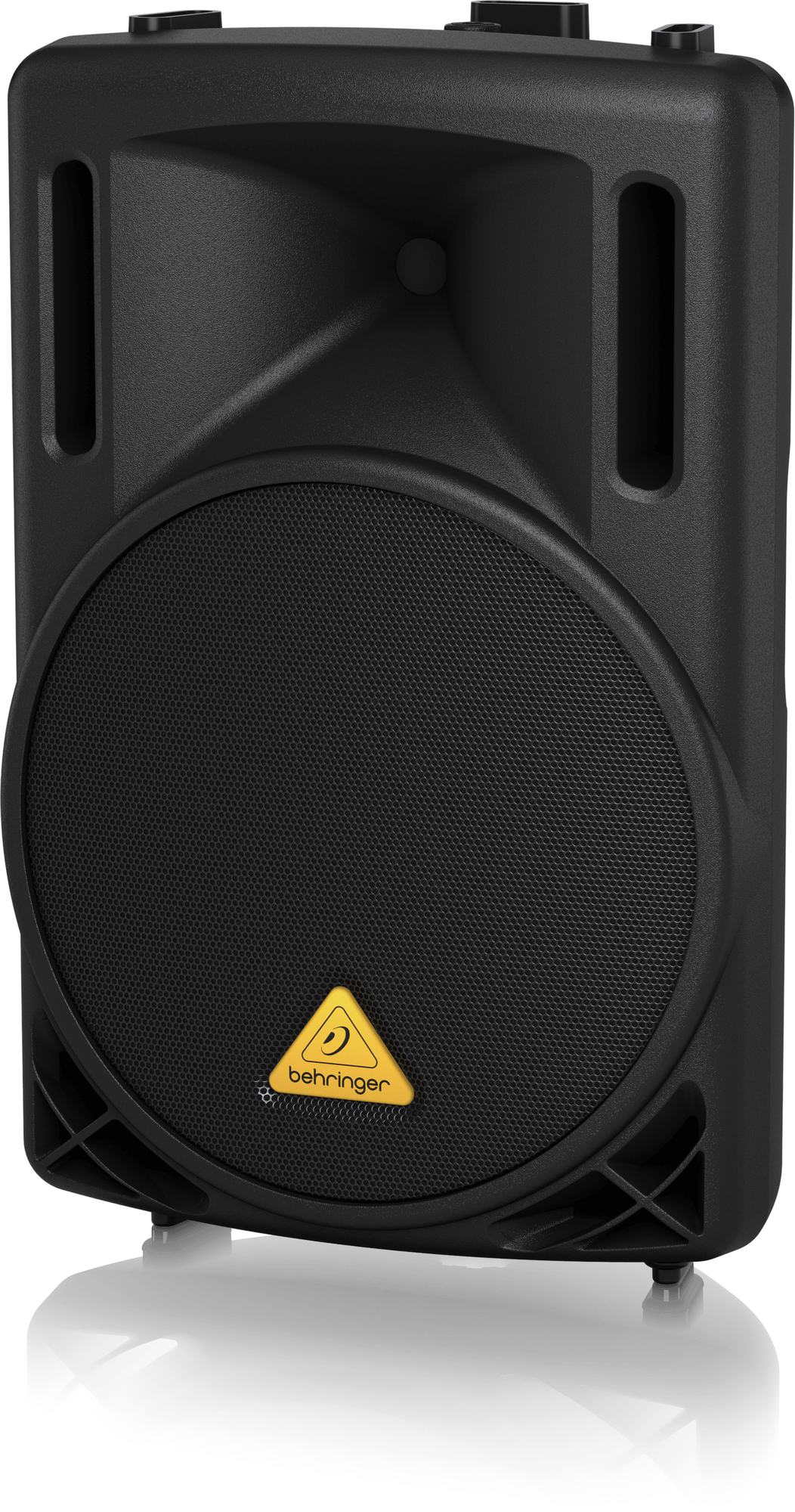

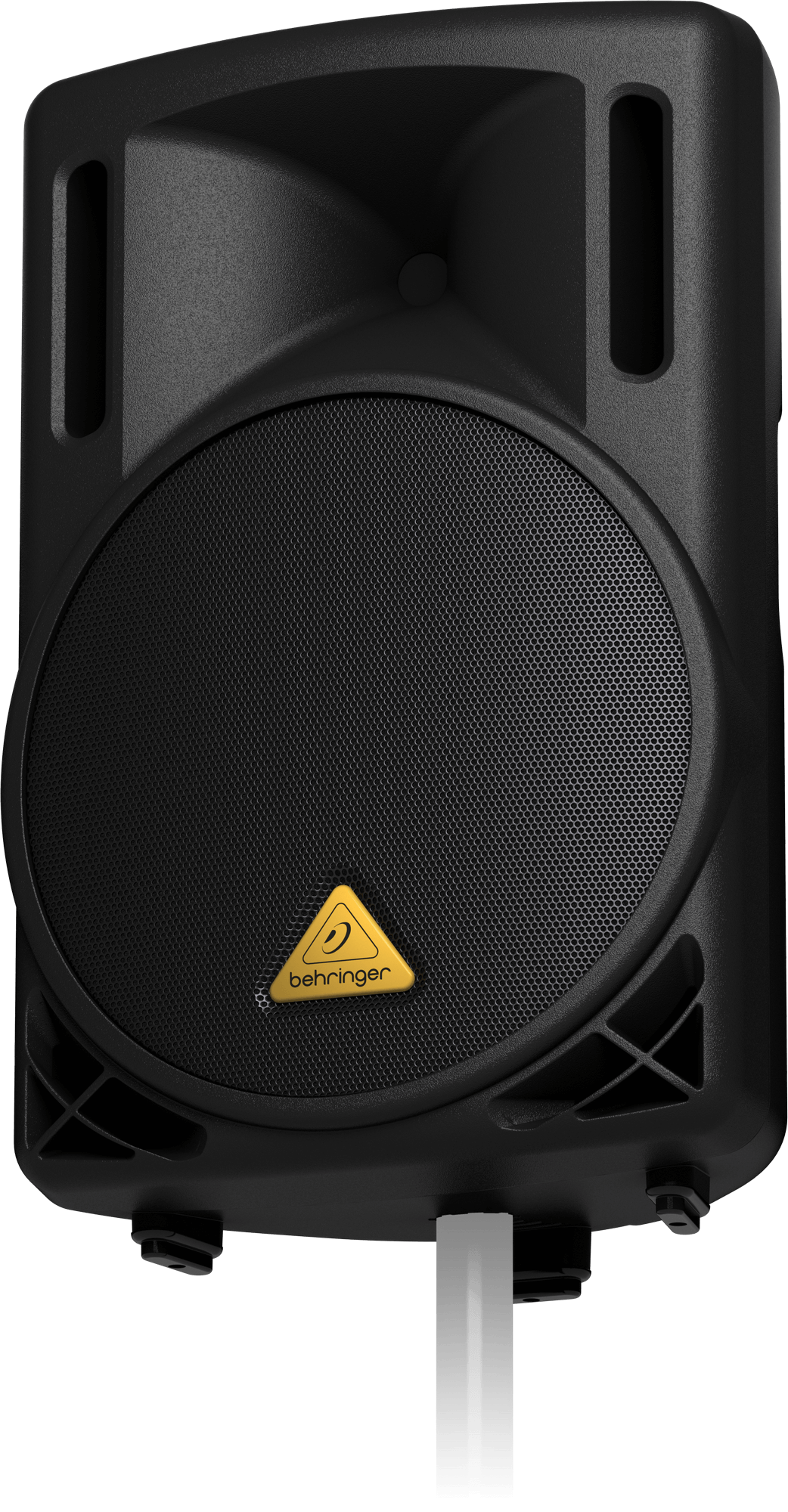

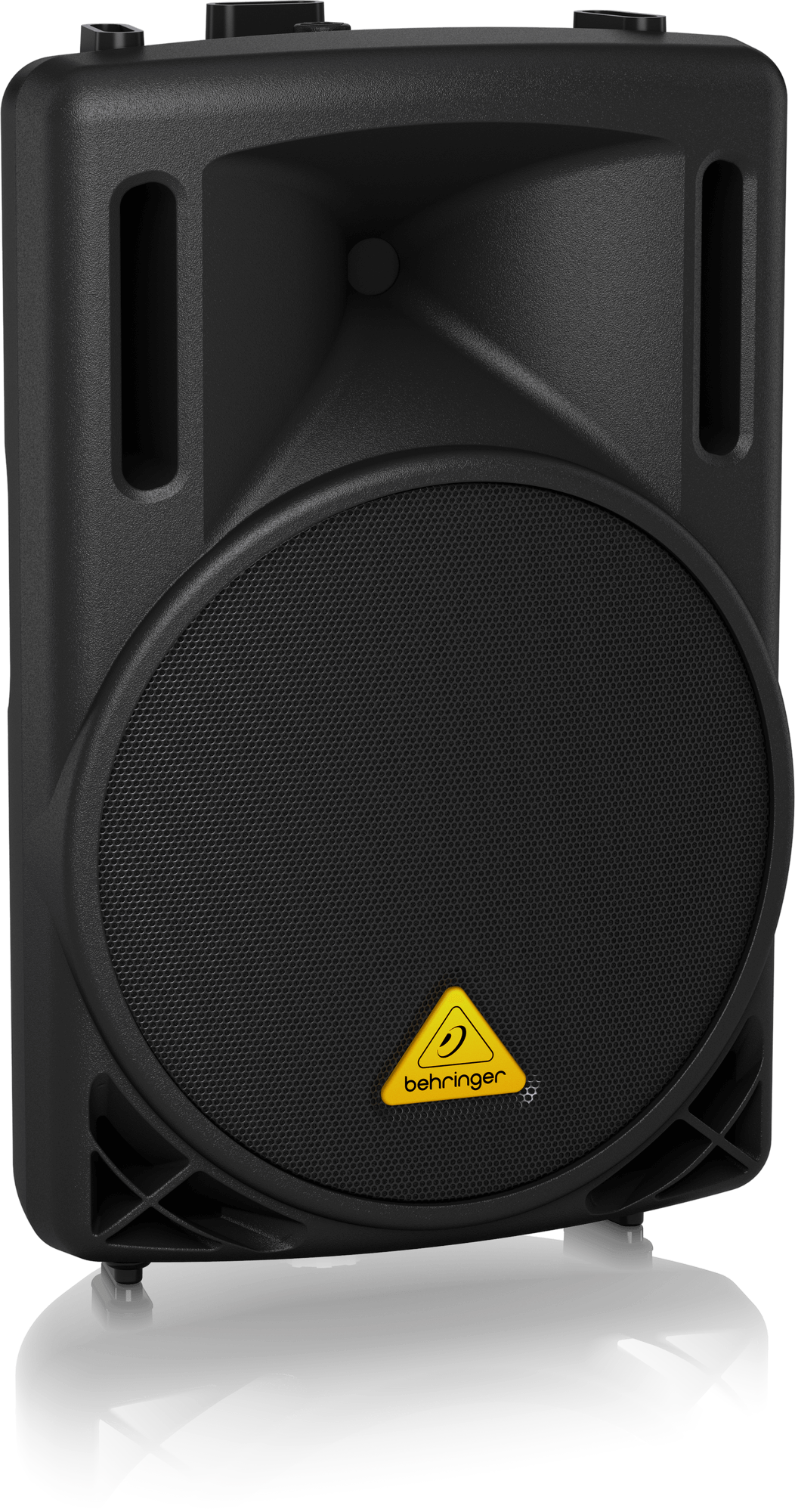

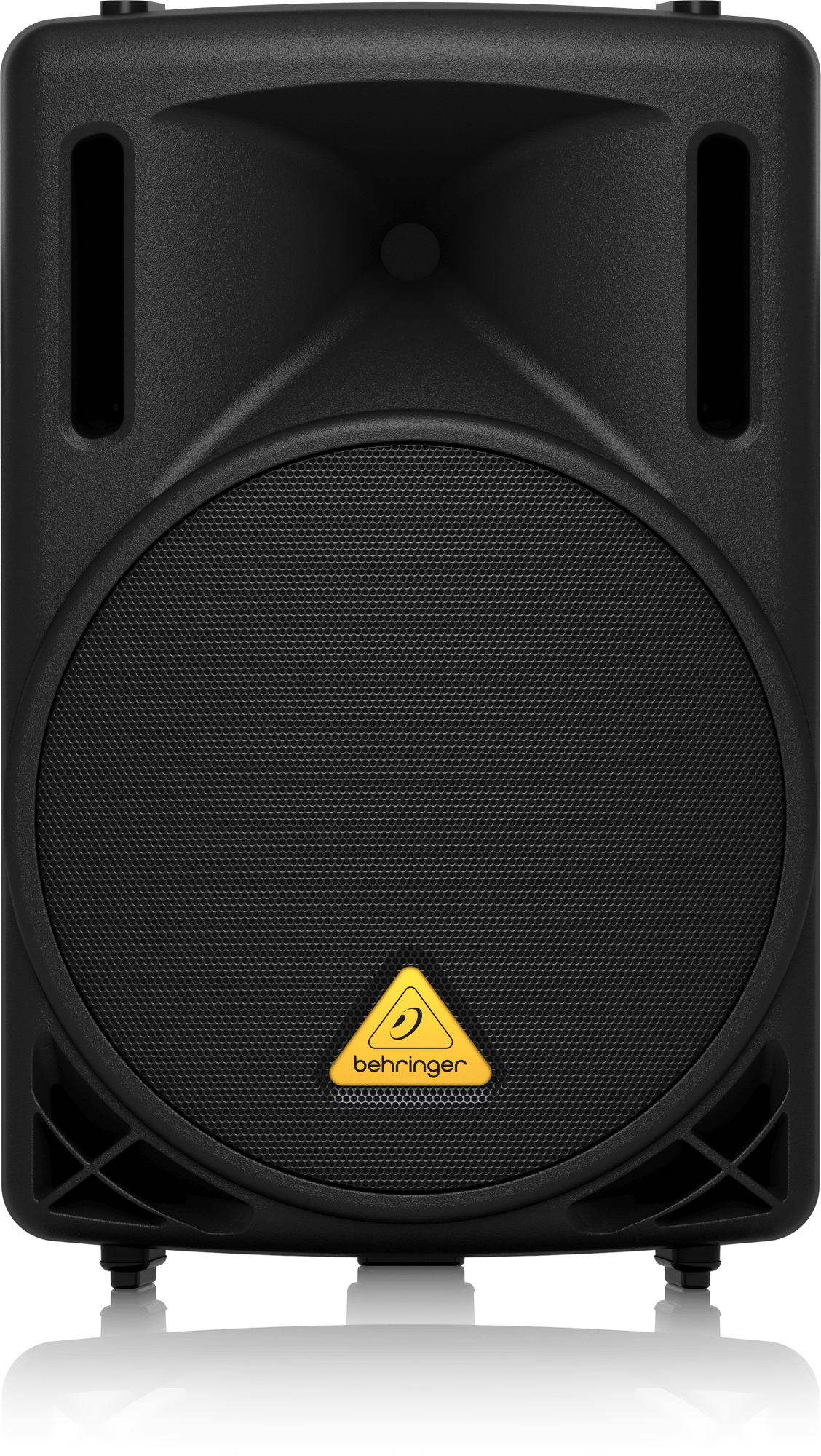

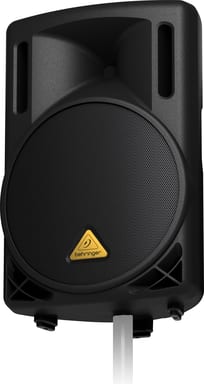

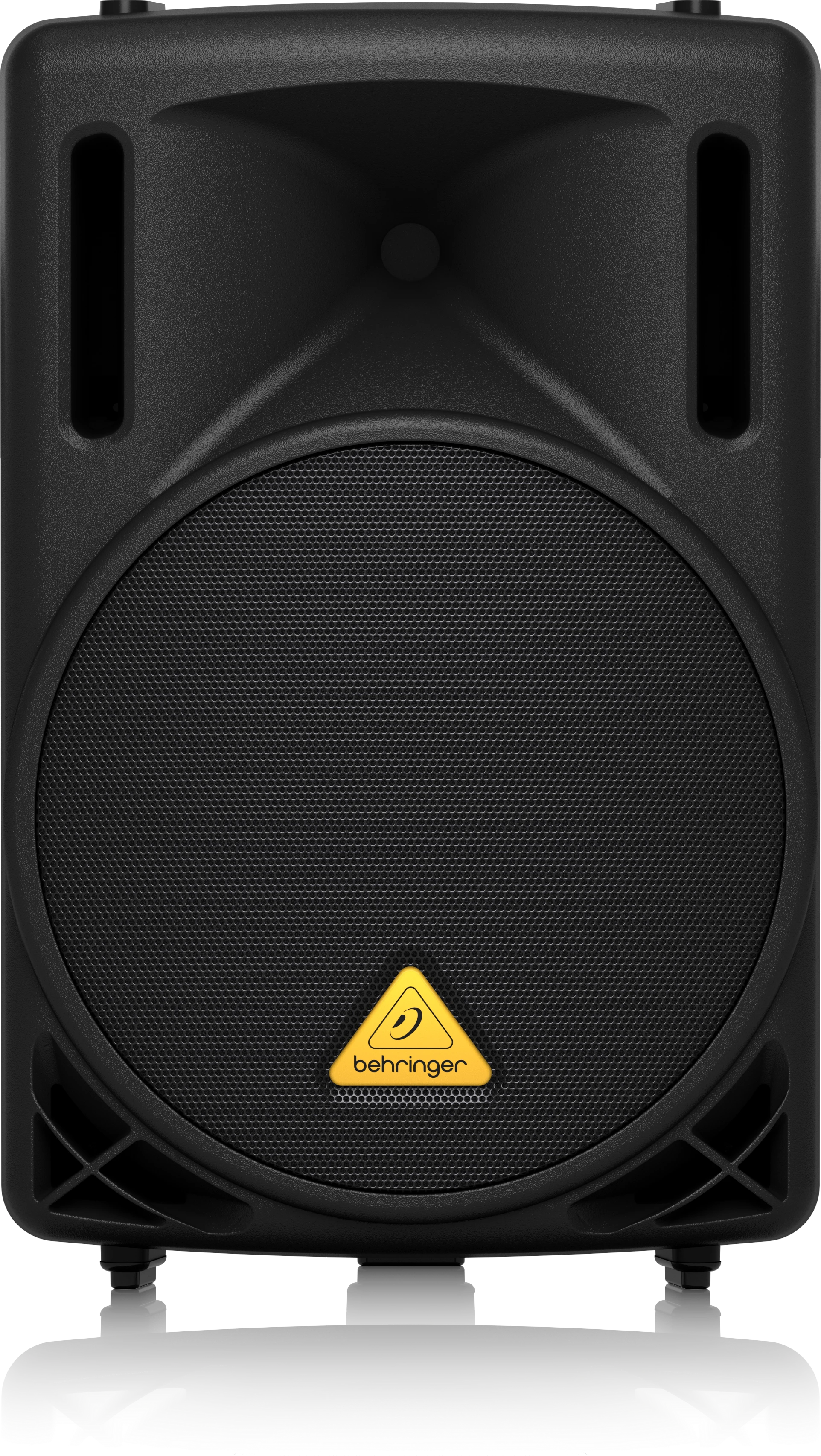

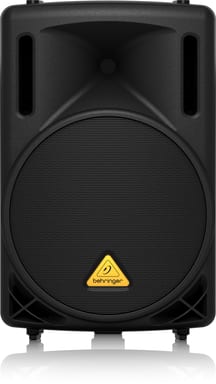

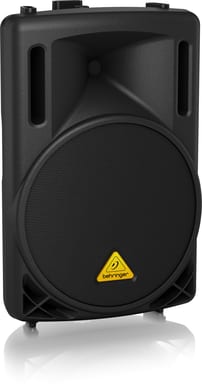

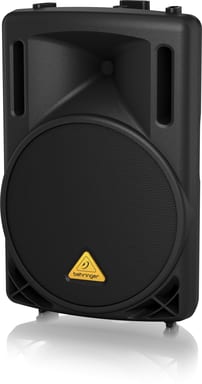

Your mixer can sound right in the headphones and still fall flat in the hall. The B212D is the powered box that carries it out to people. Feed it a balanced mixer output, then link more speakers as the space grows. The cabinet weighs 14.5 kg and measures about 550 x 345 x 270 mm.
Connect what the gig hands you

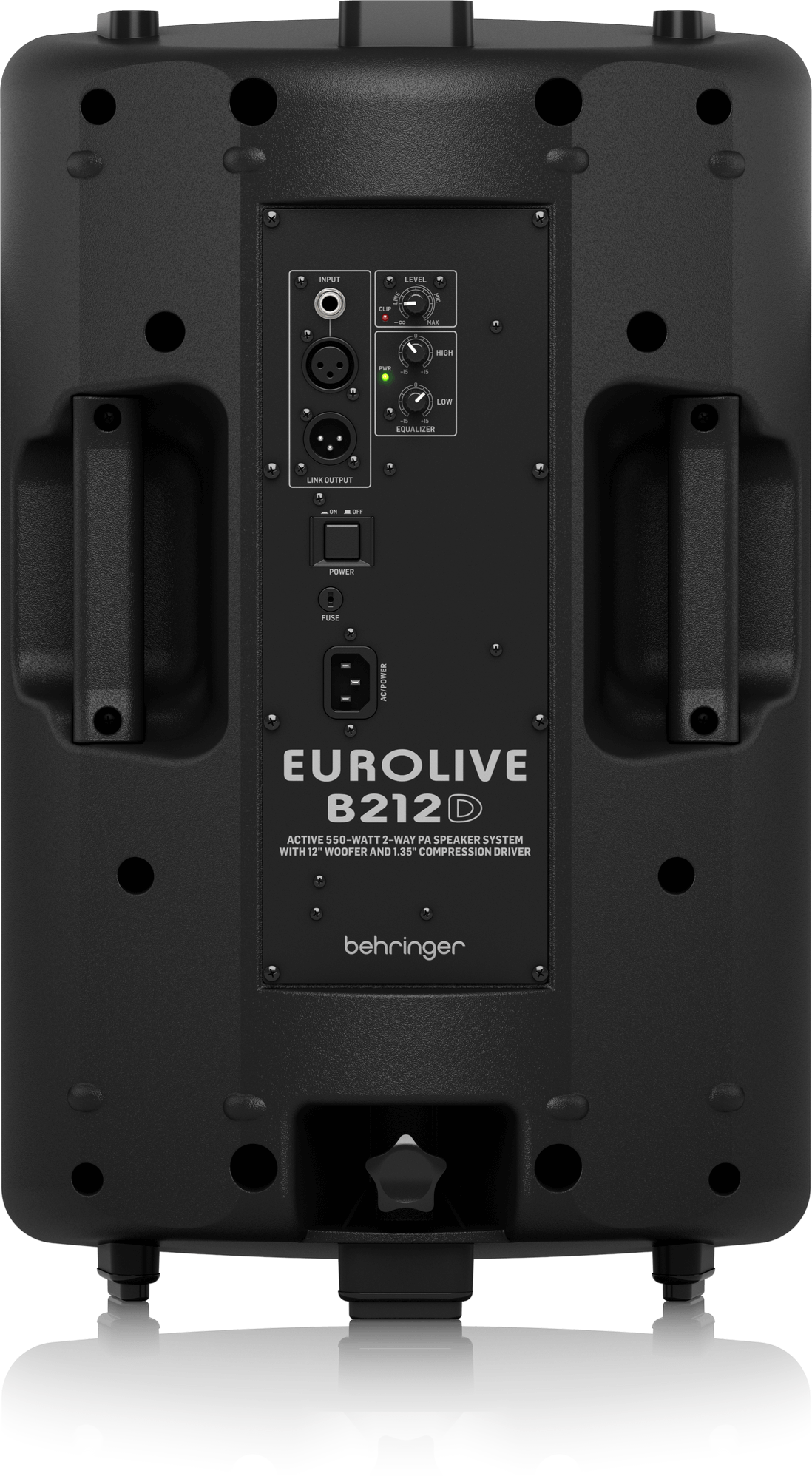

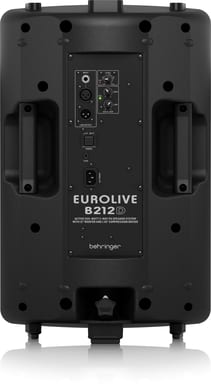

The XLR input accepts a microphone, a balanced mixer output or the LINK OUTPUT of another speaker. Line-level sources and mixer outputs go into the ¼" TRS input. Use only one of the two at a time.
A chain of speakers, level by level
LINK OUTPUT passes the same source signal on to the next speaker through an XLR cable. When several speakers play together, set the LEVEL knob on every one. Back it off whenever the CLIP LED flashes.
Tuned for the space you are in
HIGH and LOW controls give ±15 dB of treble and bass. The crossover sits at 2.4 kHz, and response covers 65 Hz to 20 kHz. Inside, an optical limiter works alongside a processor-controlled dynamic equaliser.
