B105D

Compact 50-watt PA/monitor speaker with Bluetooth audio streaming, a USB MP3 player and mic/line and line combo inputs

Where to buy B105D (0313-AGZ)

Rehearse at home, then hear yourself at the gig.

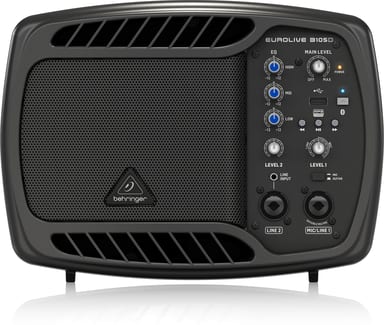

In the living room, it plays the backing track while you sing over it. At the gig, it stands near you as a personal monitor. The B105D weighs 3.05 kg and puts 50 watts, a microphone input and music playback in one speaker.

Backing tracks without a laptop

Pair your phone or tablet with BLUETOOTH: its LED blinks while waiting, then stays lit. Or plug a USB memory device with MP3 files into the USB input. BACK, PLAY/PAUSE and FORWARD control playback from either source.

B105D, image 2 of 4

Your voice or guitar, balanced by hand

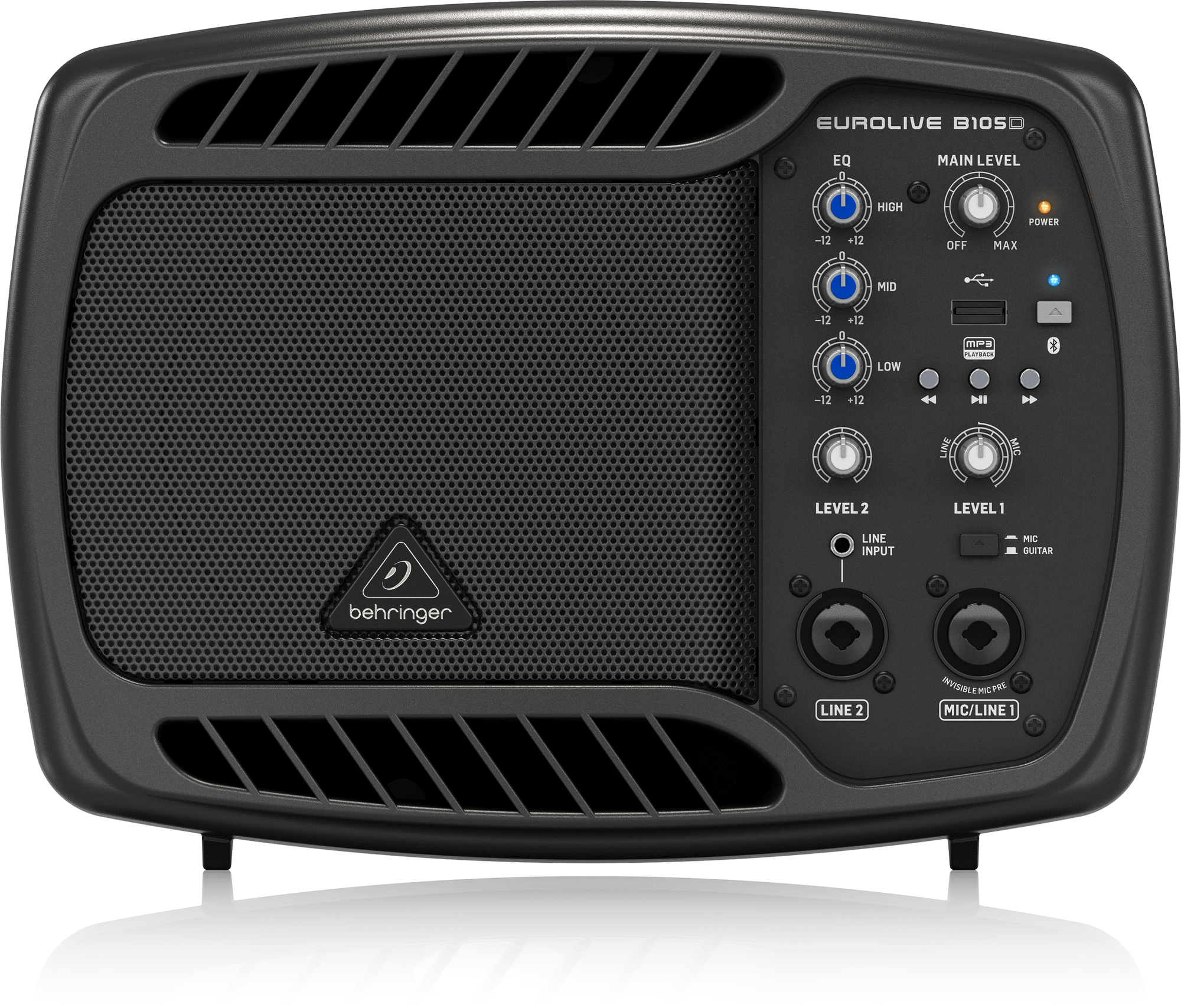

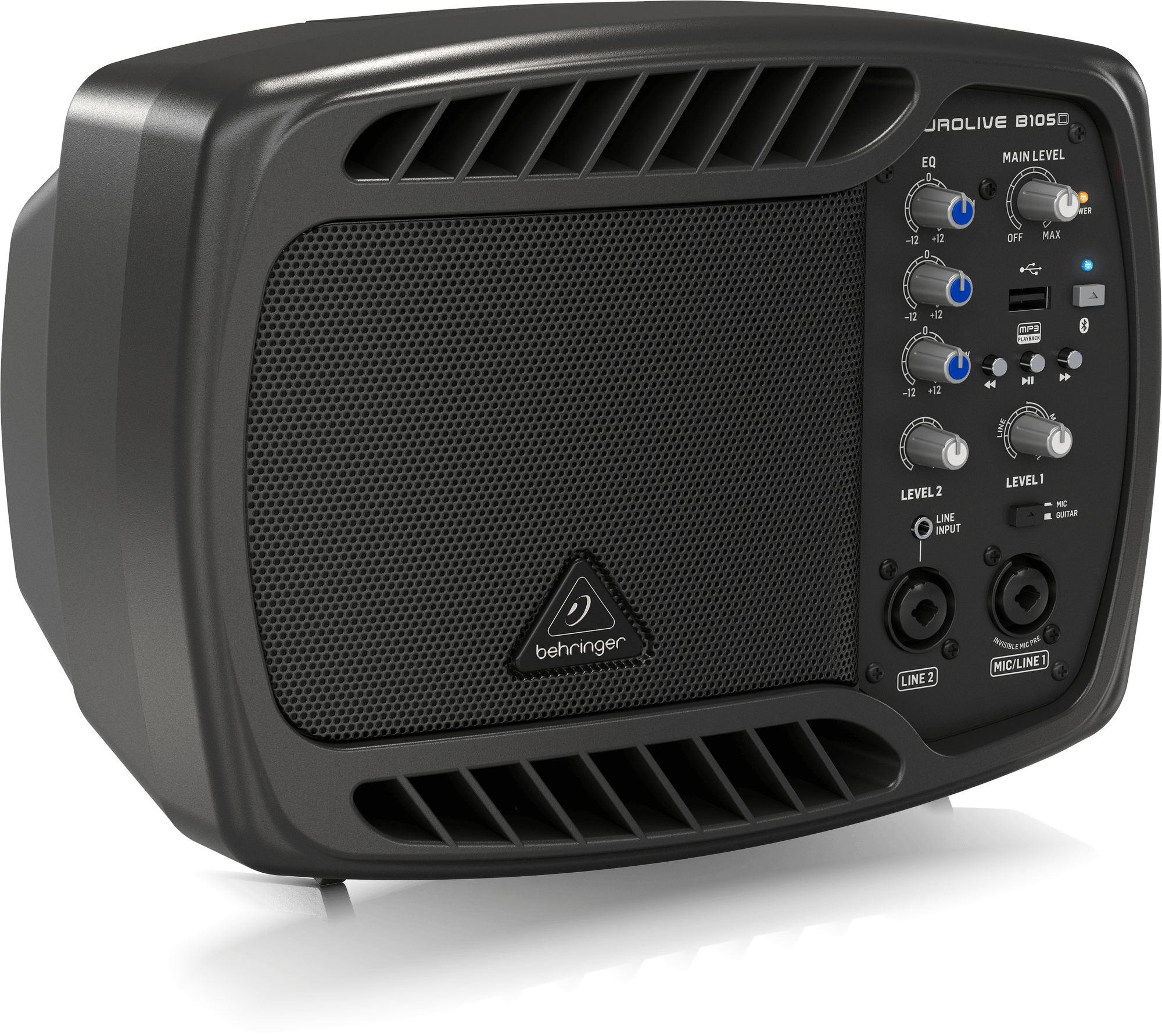

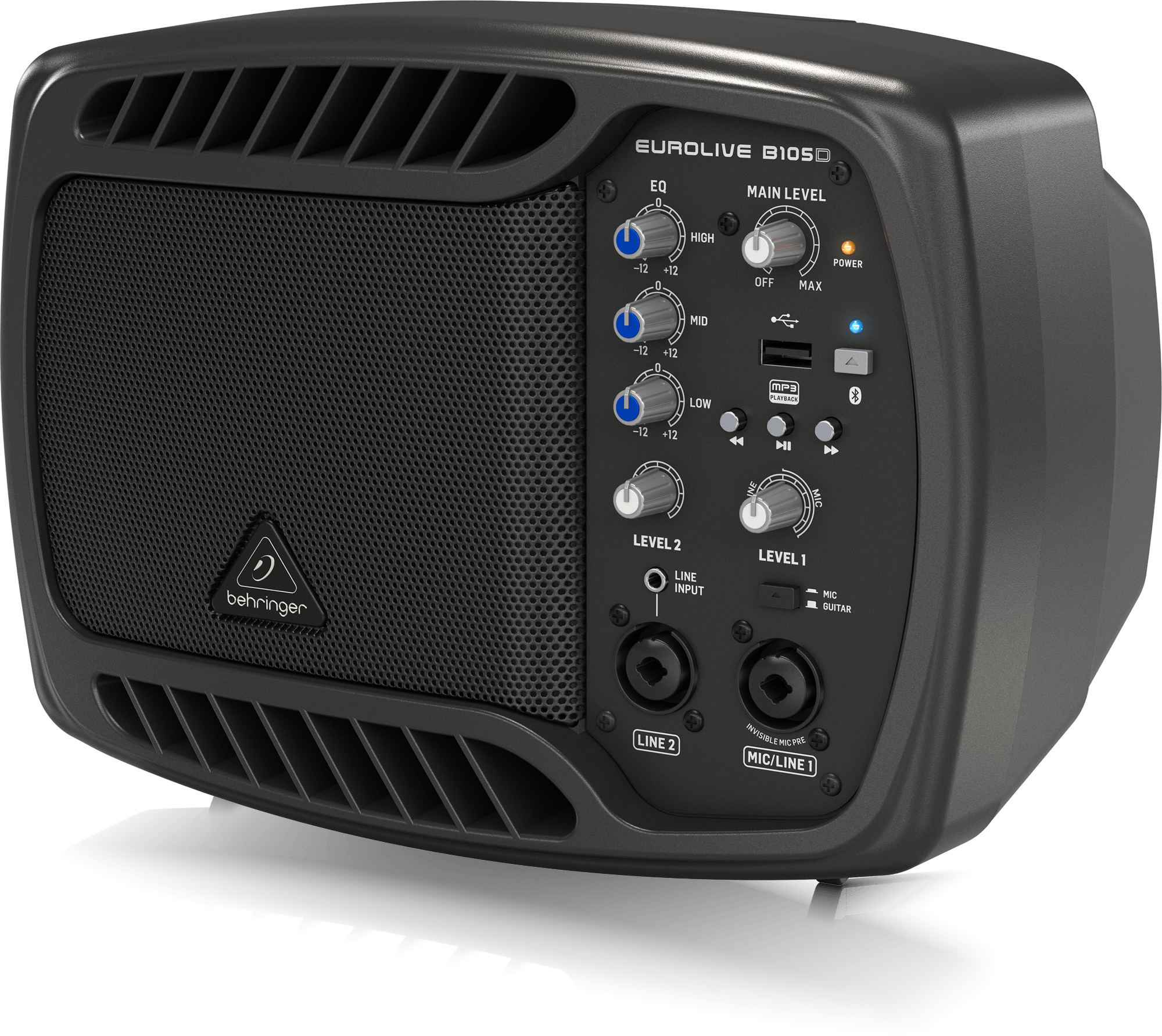

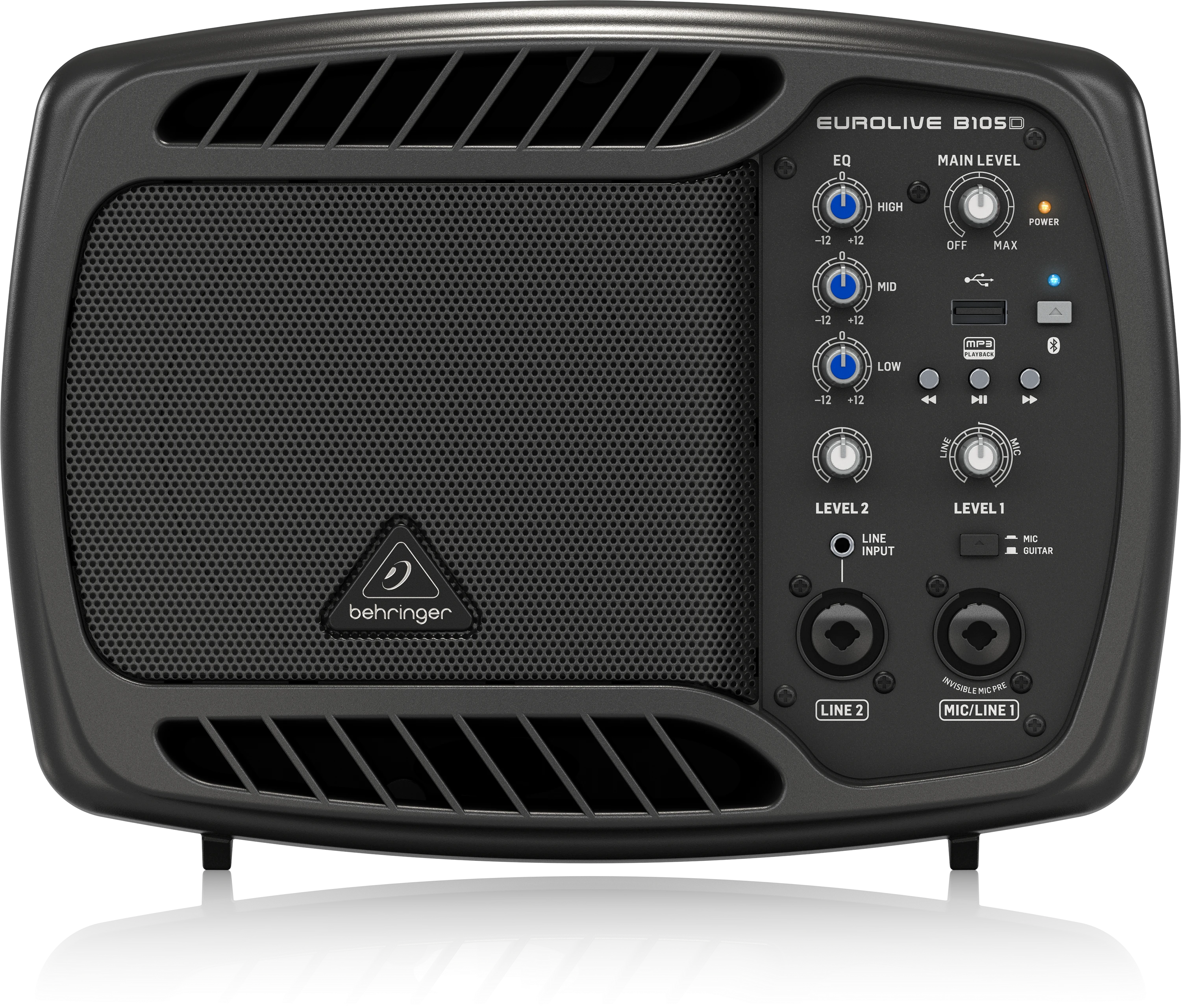

Plug a microphone or a guitar into the MIC/LINE 1 combo jack and set the MIC/GUITAR switch to match. LEVEL 1 sets its level. A second source goes into the LINE 2 combo jack. A phone with a 3.5 mm plug uses LINE INPUT, and LEVEL 2 sets both. HIGH, MID and LOW EQ adjust the overall sound.

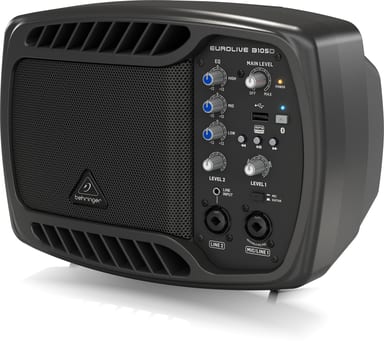

B105D, image 3 of 4

Monitor today, main speaker tomorrow

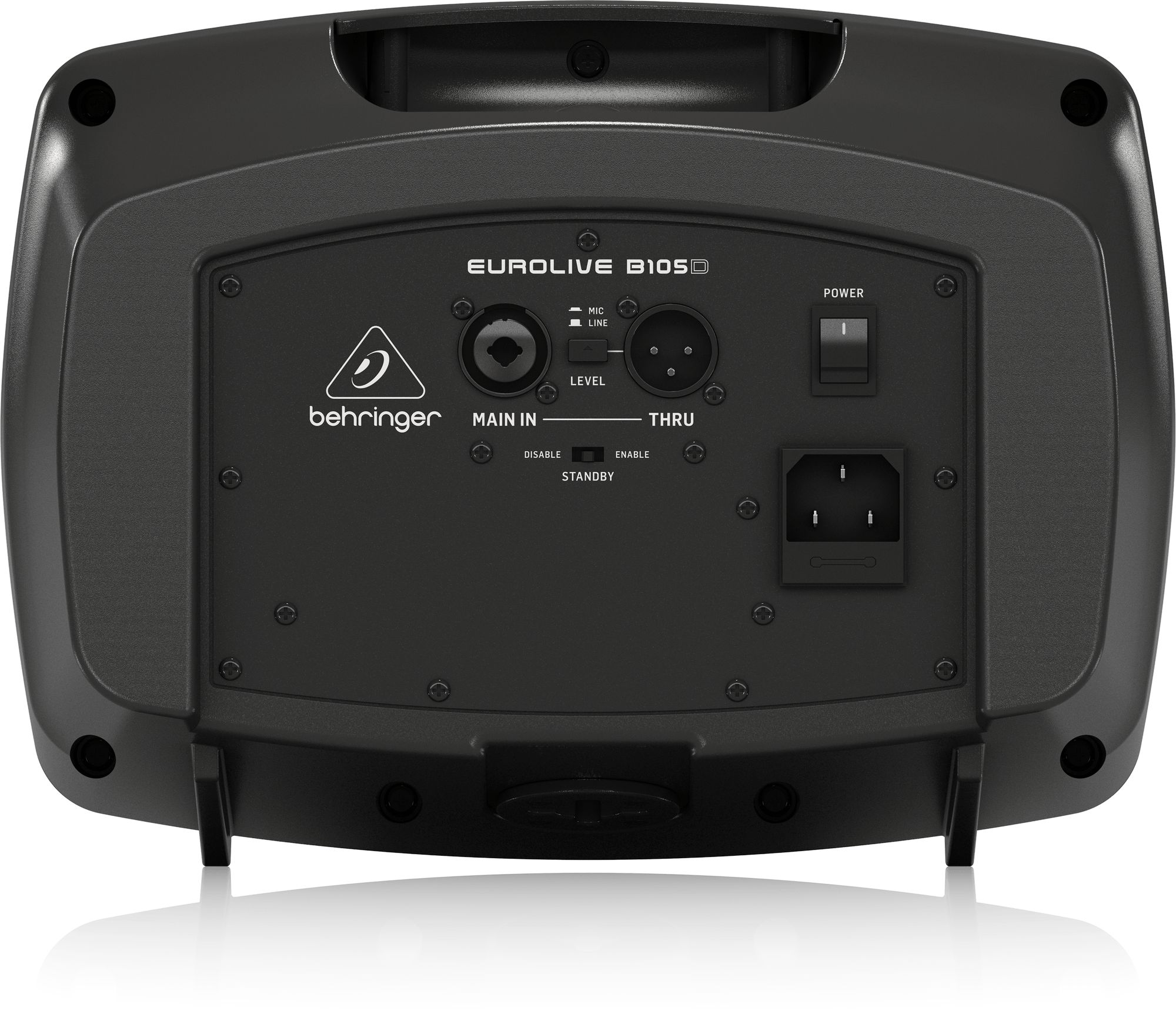

Place it on a stand as a personal monitor or as a main speaker. Mounting it on a mic stand needs a mic stand adapter and a thread adapter, sold separately. The THRU jack sends your final mix over XLR to a mixer, an amplifier or another active speaker. With auto-standby enabled, it powers down after 30 minutes without an input signal.

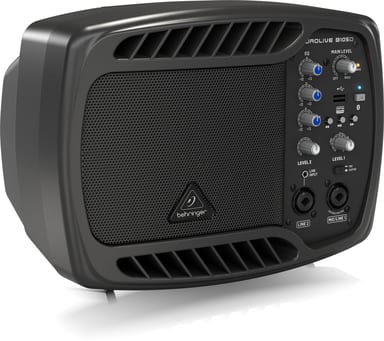

B105D, image 4 of 4
