Reach the balcony in time with the stage.

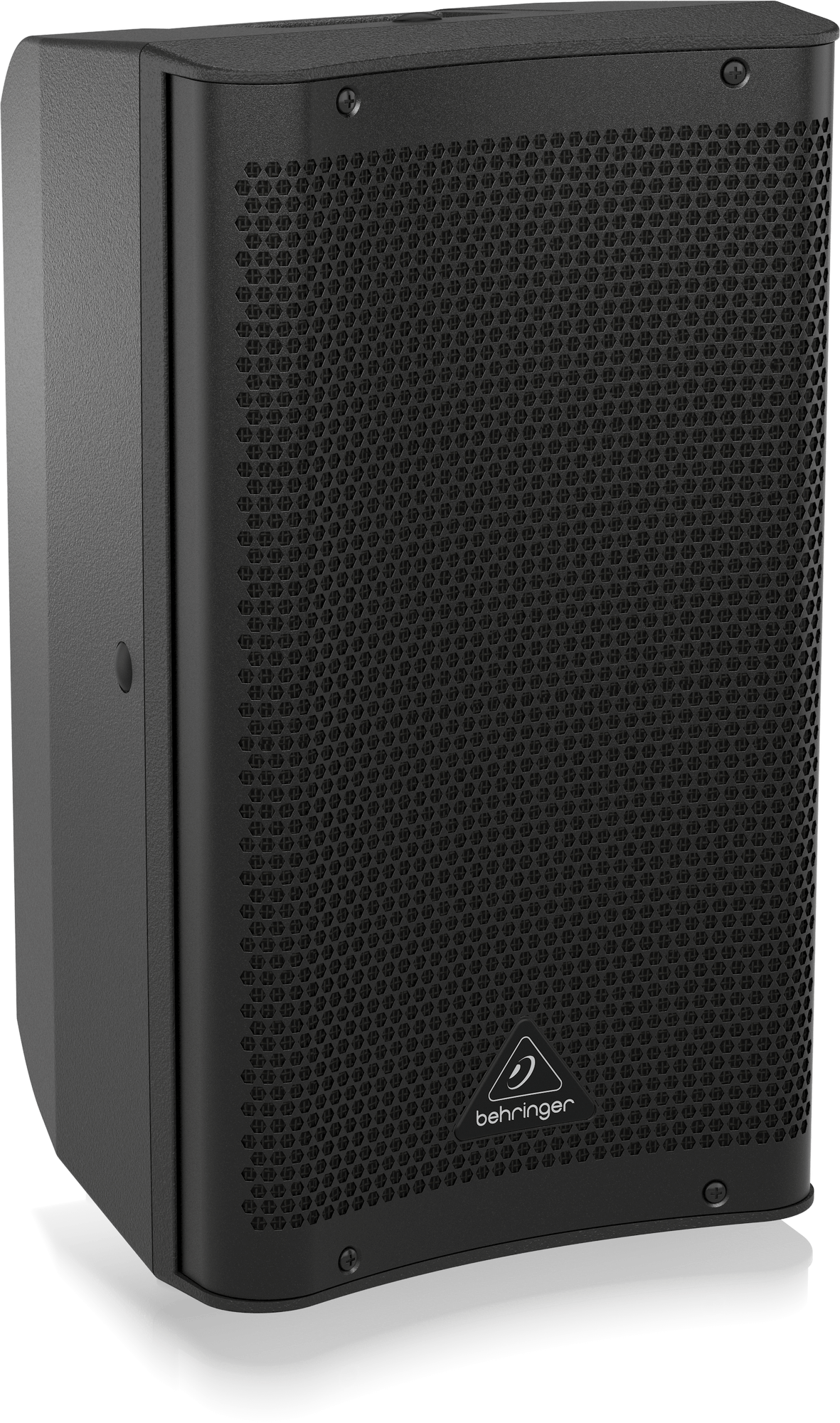

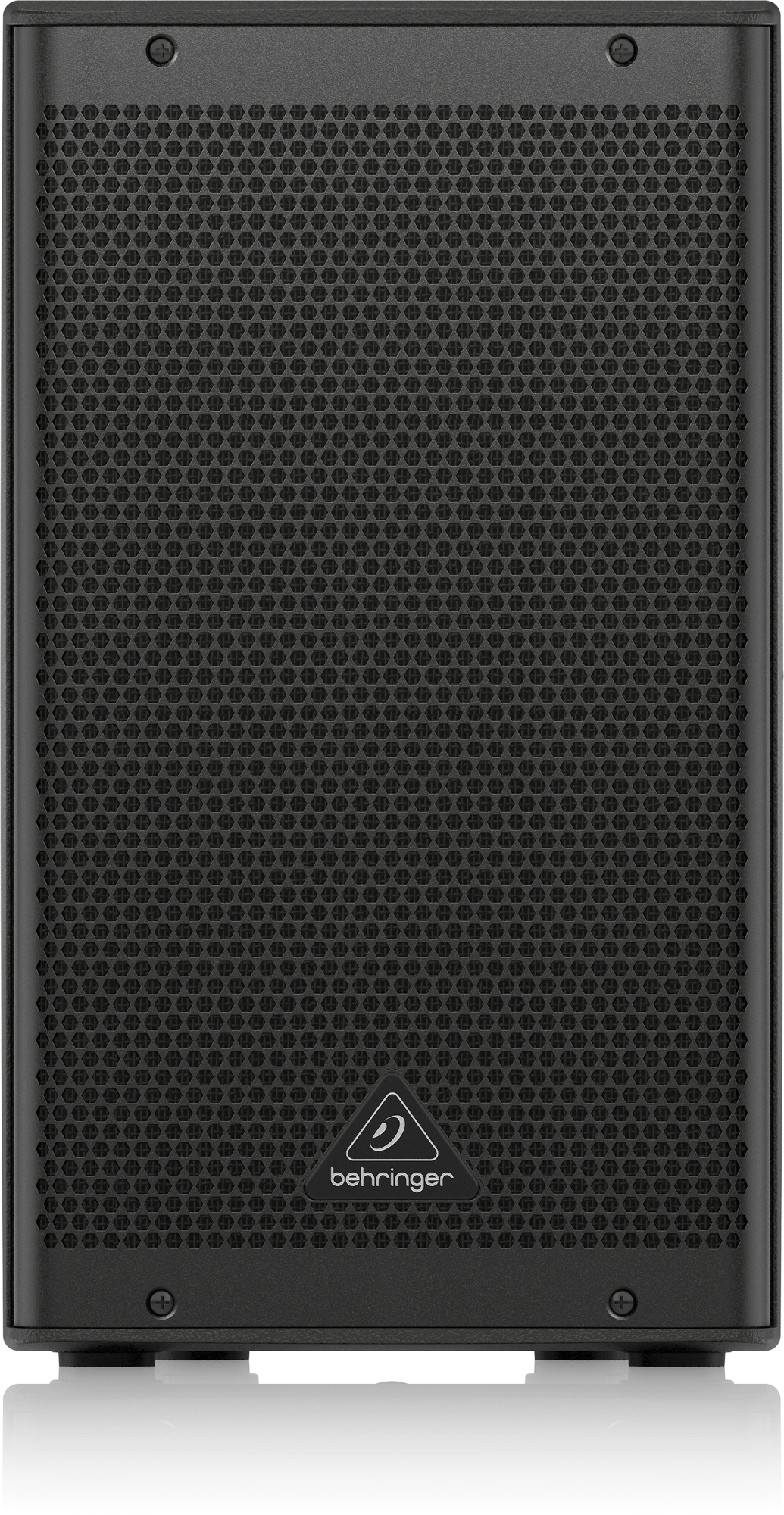

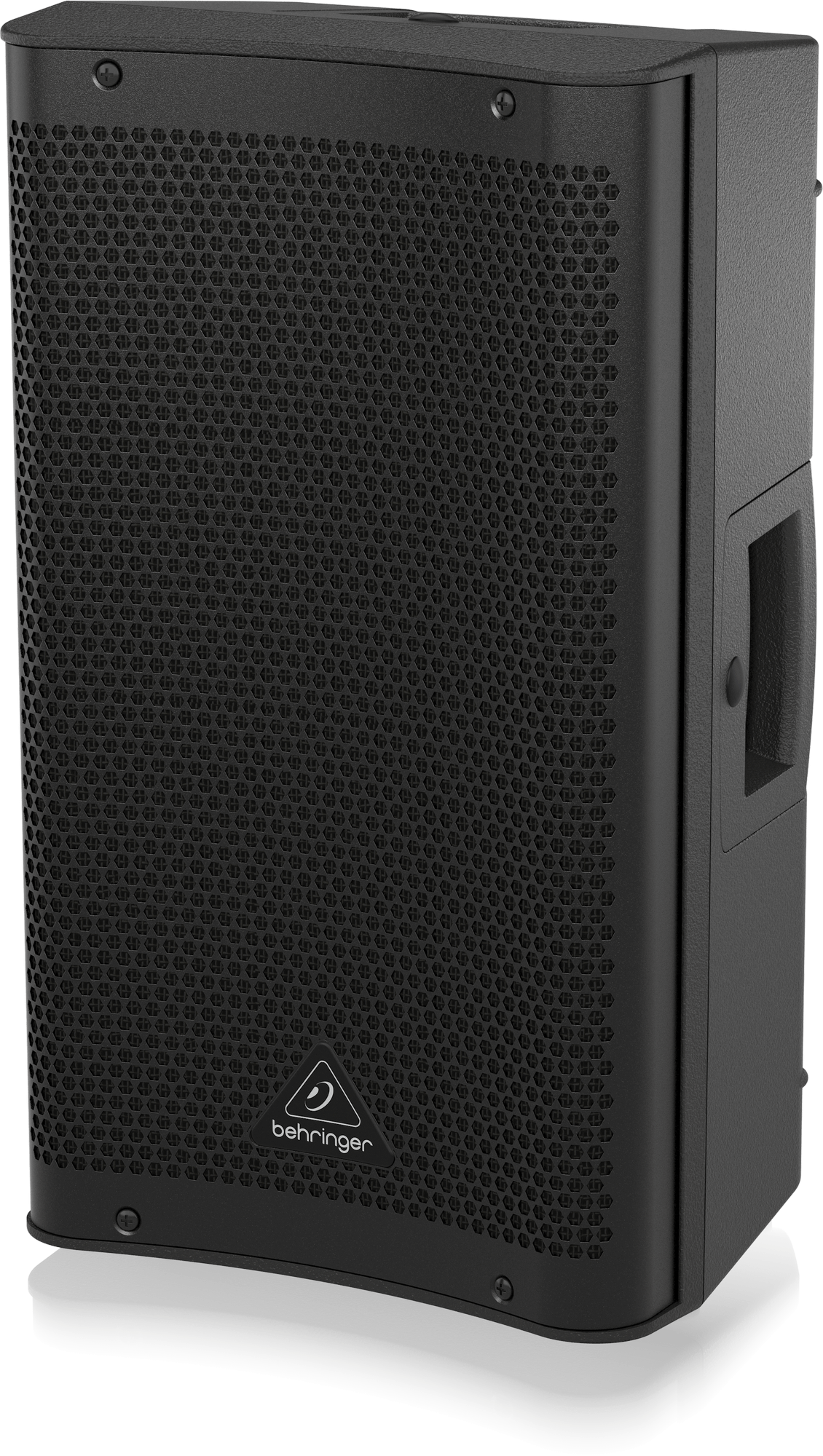

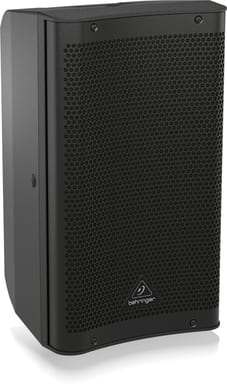

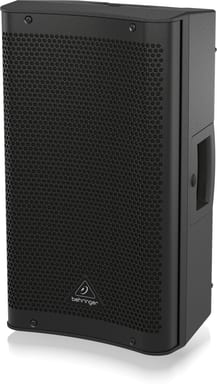

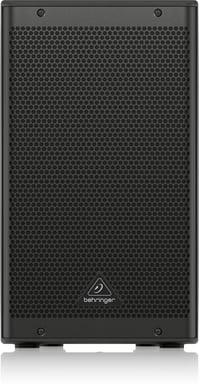

A reading at the lectern. A song from the band. Music from a phone while people arrive. When one volunteer runs it all, the DR110DSP keeps it in one active speaker. A 254 mm (10") LF driver and a 2-way active crossover cover 55 Hz to 19 kHz.
Microphone, instrument and phone together

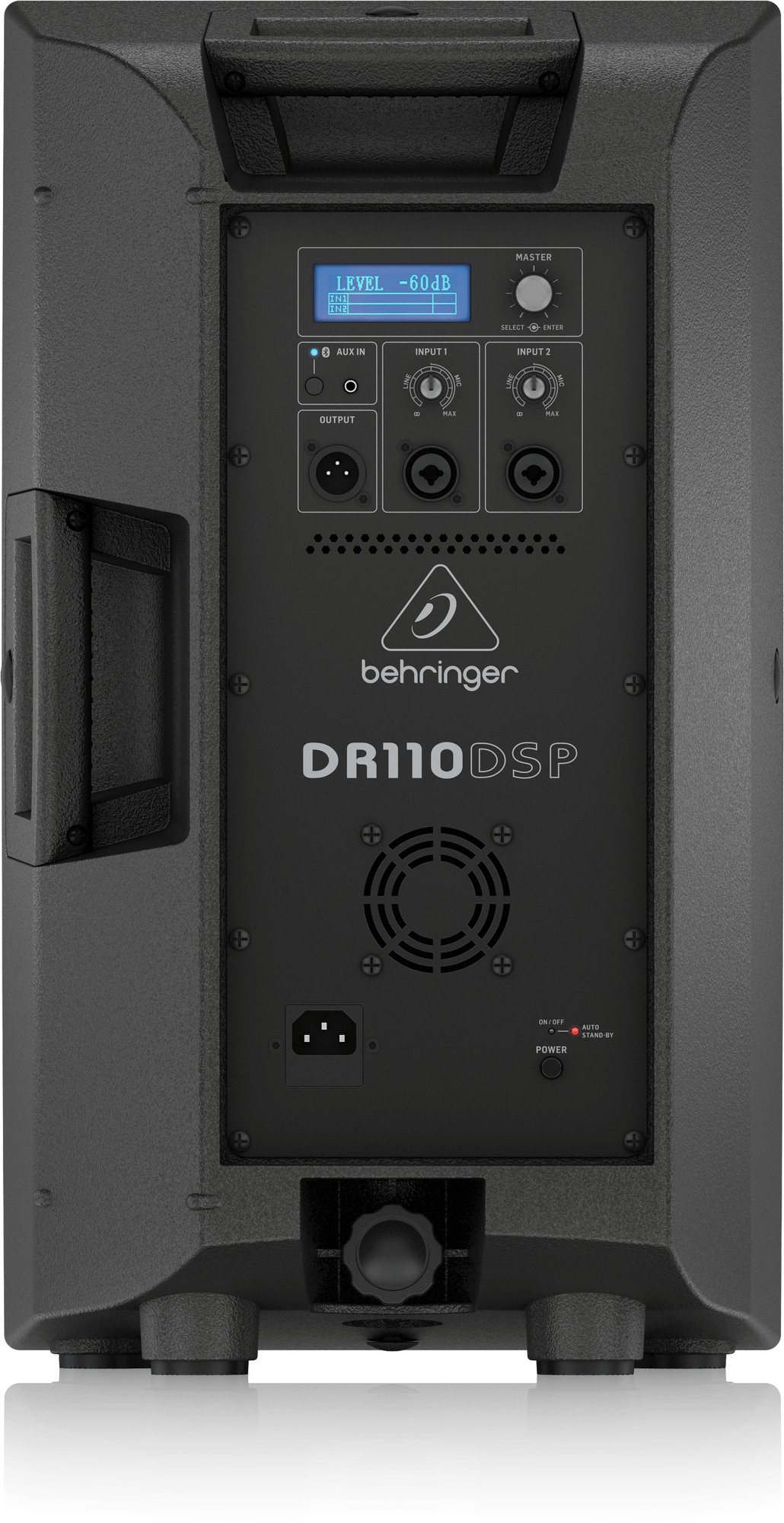

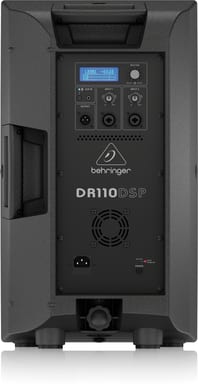

Two combo inputs take XLR or ¼" cables, and each channel has its own volume knob. AUX IN takes a media player on a 1/8" TRS cable, summed to mono. Press the BLUETOOTH button to stream. The blue LED flashes while searching and lights solid once connected.
A sound program for each part
Push the MASTER knob to open the DSP functions. Choose the MUSIC, DJ, LIVE or SPEECH sound program. HIGH EQ, MID EQ and LOW EQ each boost or cut by up to 12 dB. A lockout function covers all settings, so a preset stays as you left it.
More speakers, further back
The XLR OUTPUT sends the combined CH1 and CH2 signals to another device. DELAY holds the signal back slightly, so music plays in time with speakers further away, such as in a balcony. LED MODE can show when the HF or LF limiter engages. The speaker weighs 13.3 kg.
