Bass for a pub that plays music for hours.
In a pub or bar, the music often plays all evening. This active PA subwoofer is designed for continuous use over long periods. For that reason, it has no automatic standby mode. A 200 mm (8") woofer and a built-in stereo crossover sit inside.

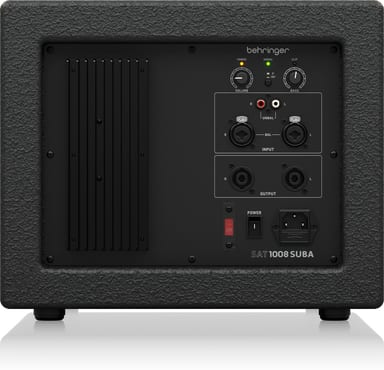

Connect the music source
The combo inputs take XLR or ¼" TRS from the line outputs of your music source. Balanced connections reject noise better than RCA. The RCA inputs L/R take unbalanced line-level outputs.
Run the satellites from the sub
Two lockable NL4 outputs send a speaker-level signal to SAT 1004 speakers. Only connect two SAT 1004 speakers per output. The crossover frequency is 130 Hz, and frequency response runs from 30 Hz to 145 Hz.
Set it and place it
Volume sets the overall level of the system. Bass Control boosts or cuts the bass range, and Phase reverses the subwoofer phase. Try corner locations where practical. Four feet are supplied, and indents on top let you stack two subwoofers.
