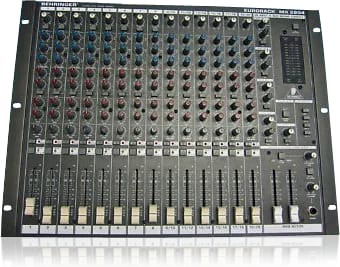

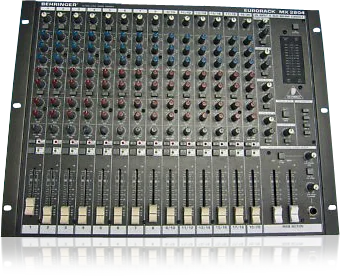

The Behringer MX2804 EURORACK was a 28-input, 2+2-bus mixer engineered to give small studios, broadcasters, and live engineers a serious tracking and front-of-house tool without the serious price tag. Eight mono channels with insert points and direct outs sat alongside six stereo channels and four additional stereo line inputs, giving you 28 mixable sources and the flexibility to route them however the session demanded. Discrete, balanced microphone inputs with switchable phantom power, three-band channel EQ, four aux sends with switchable pre/post on Aux 1 and 2, and a dedicated Alt 3/4 output bus made it a workhorse for stage monitors, recording sub-mixes, and complex live shows alike. True logarithmic 60 mm faders, sealed rotary pots, solo-in-place plus PFL, and an external low-noise PSU rounded out a feature set that punched well above its weight. The MX2804 is now obsolete and out of production, but legacy documentation and care guidance remain available for owners who keep this classic mixer in regular service.
MX2804 features
- New ultra-low noise design
- 8 mono input channels with Insert points and direct channel outputs
- 6 stereo input channels
- 3-band EQ on all channels
- 4 Aux sends with 1 and 2 switchable pre/post
- 4 stereo Line inputs
- Solo-in-place and pre-fader listen
- At least +15 dB gain available on all sends and returns
- Gain controls on all channels
- High-quality, discrete-balanced Mic inputs
- Phantom power switchable on mic channels
- High-quality, sealed rotary controls
- Supplementary Alt3/4 output bus
- High-quality true logarithmic taper, 60-mm-faders
- Accurate LED output meters with integral LED status indicators
- External power supply
- High-quality components and exceptionally rugged construction ensure long life
