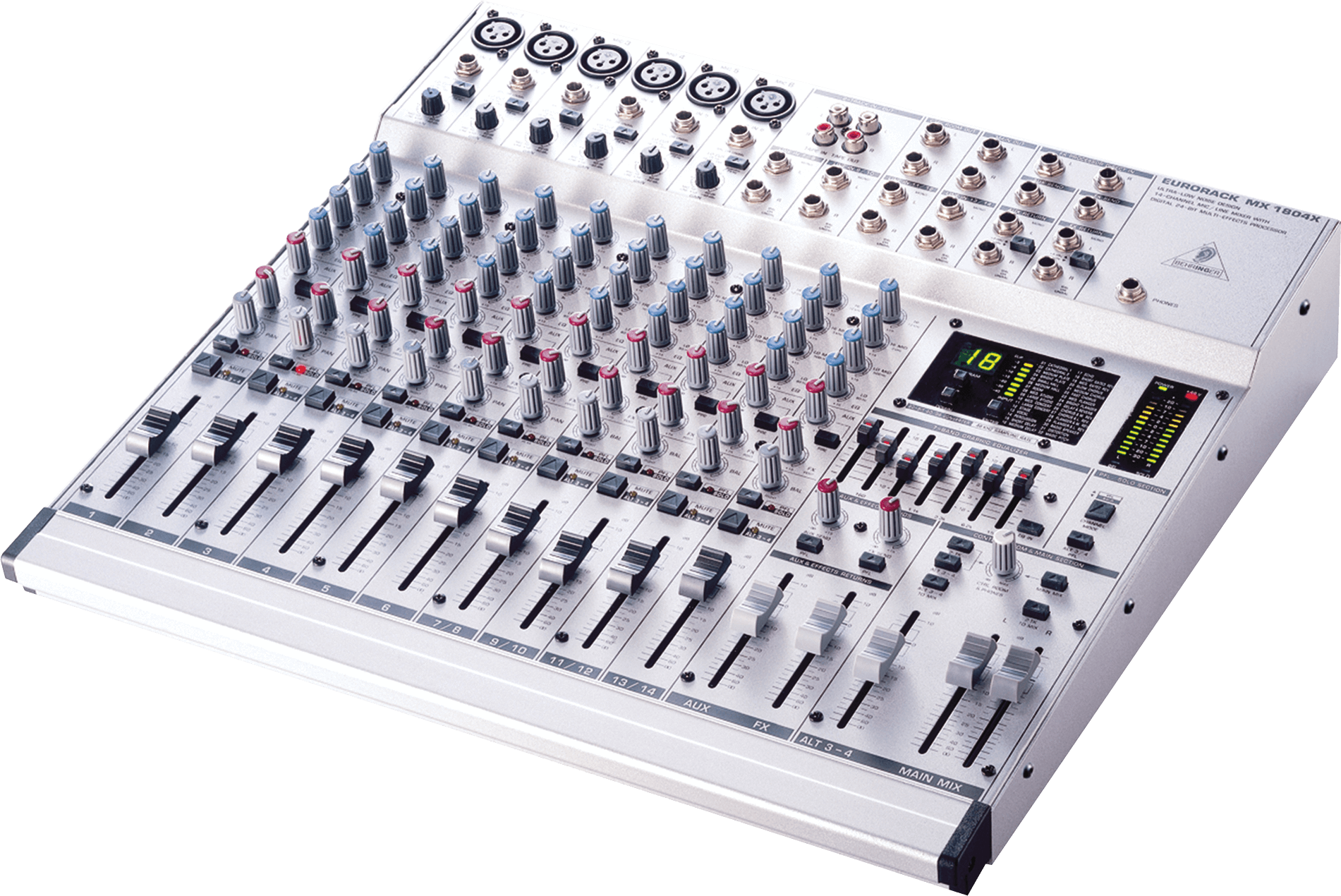

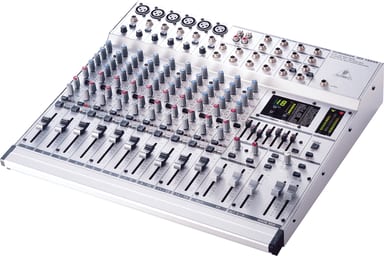

MX1804X

MX1804X features

• 6 mono input channels with balanced XLR and TRS connectors and inserts
• Ultra-low noise, discrete microphone preamps with +48 V phantom power
• 4 stereo input channels with balanced TRS connectors
• 2 additional multi-functional stereo channels with 60 mm faders
• 24-bit stereo multi-effects processor with ultra-high, 24-bit resolution A/D and D/A converters for internal and external use
• 32 original VIRTUALIZER presets including 16 different reverbs, delays, chorus, flanger, pitch shifter, speaker simulation and various combinations
• Alt 3-4 bus routable to main mix and control room with insert, PFL and 60 mm master fader
• Extremely high headroom and huge dynamic range; balanced inputs and Main outputs for highest signal integrity
• Ultra-musical 4-band EQ (stereo channels) and 3-band EQ with sweepable Mid (mono channels)
• Peak LEDs and switchable low-cut filter on all mono channels; 2 Aux sends (aux 1 pre/post) per channel, for internal or external effects and monitoring
• Master aux sends with Gain control and PFL
• Mute/Alt 3-4, Solo and PFL functions on all channels
• Separate Main mix, Alt 3-4, Control room and Headphone outputs
• Highly accurate 12-segment bargraph meters
• High-precision 60 mm faders and sealed potentiometers
• State-of-the-art 4580 ICs and high-quality components for crystal-clear audio performance
• High-quality component components and exceptionally rugged construction ensure long life
