Your stream, on real knobs.

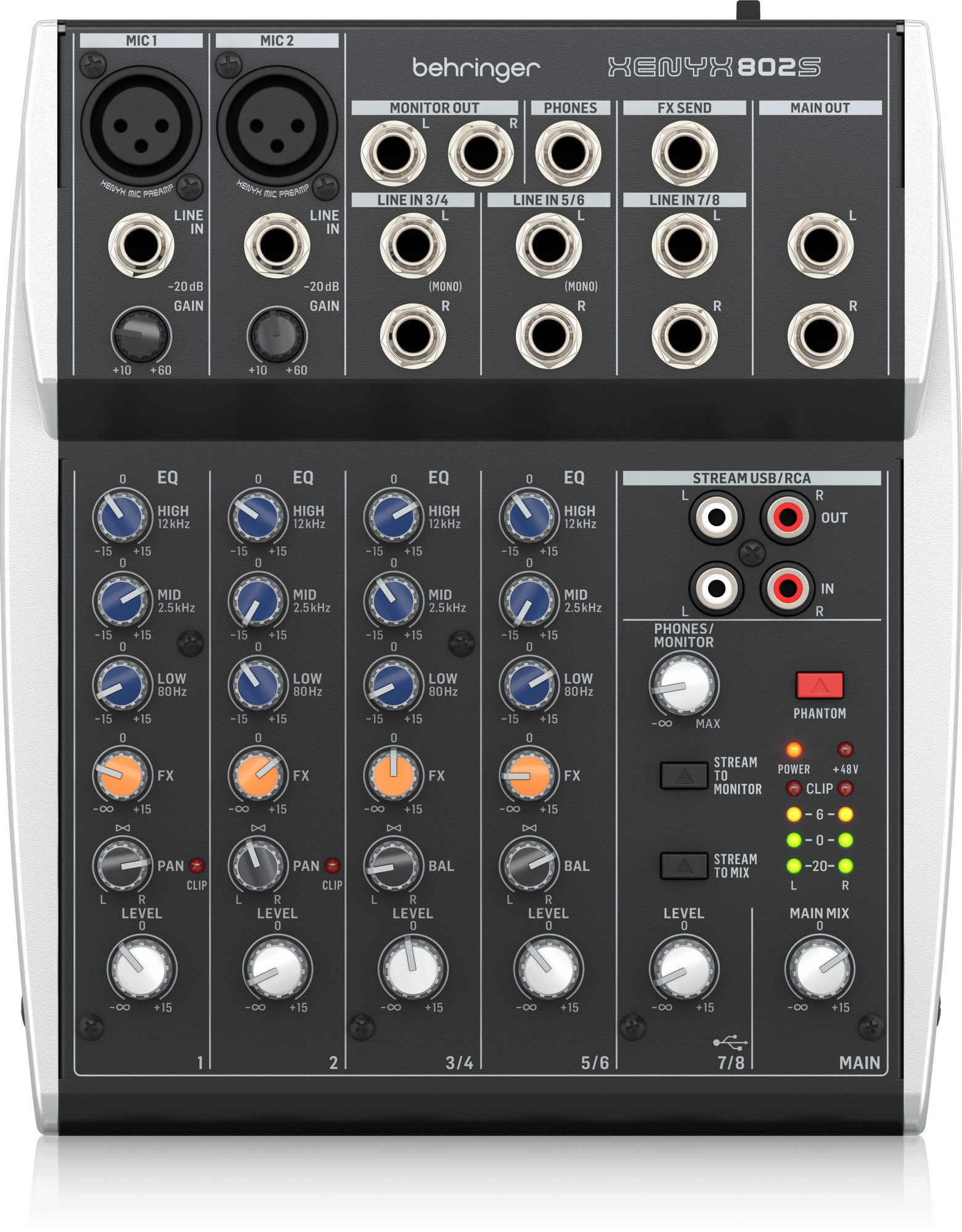

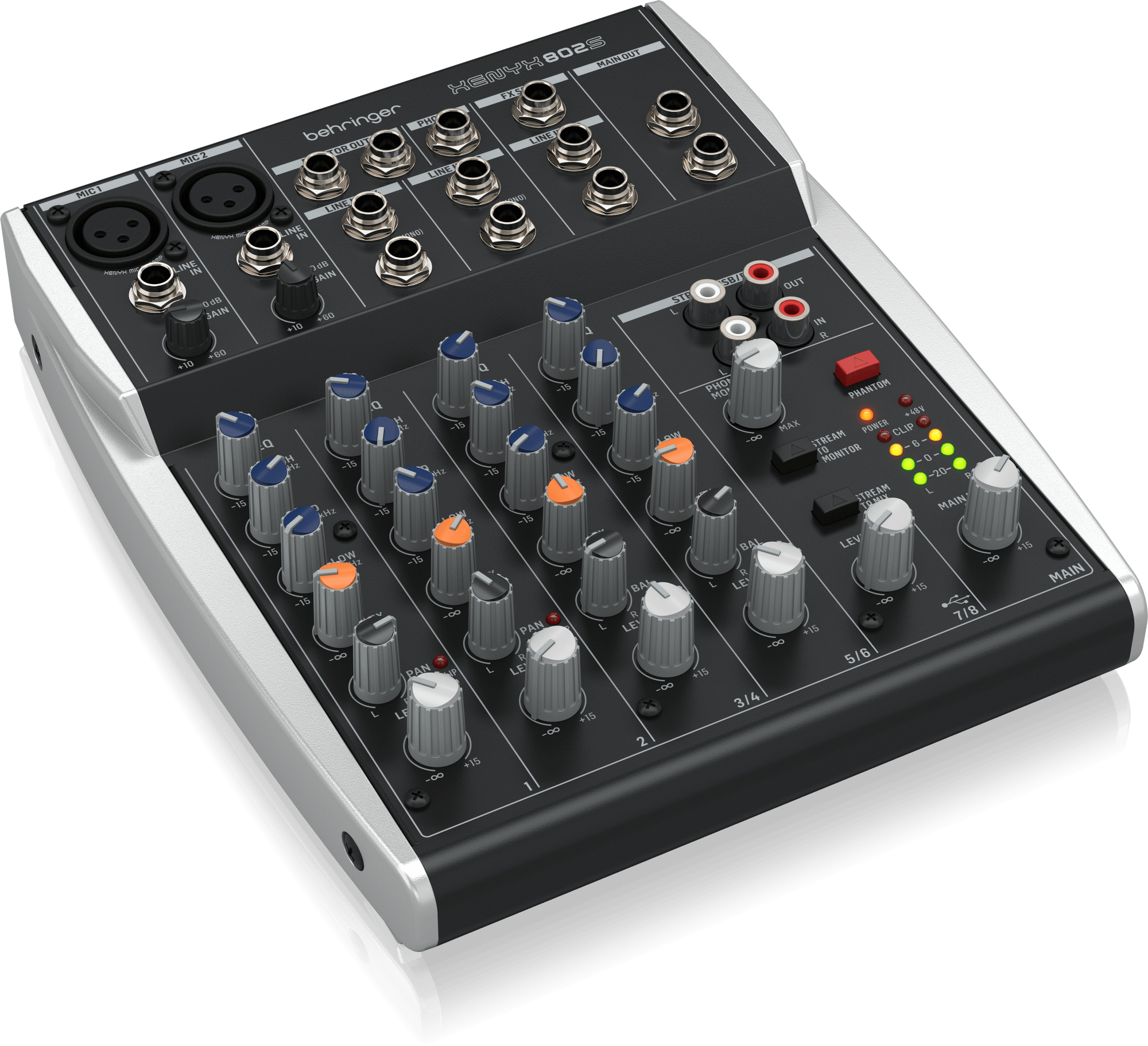

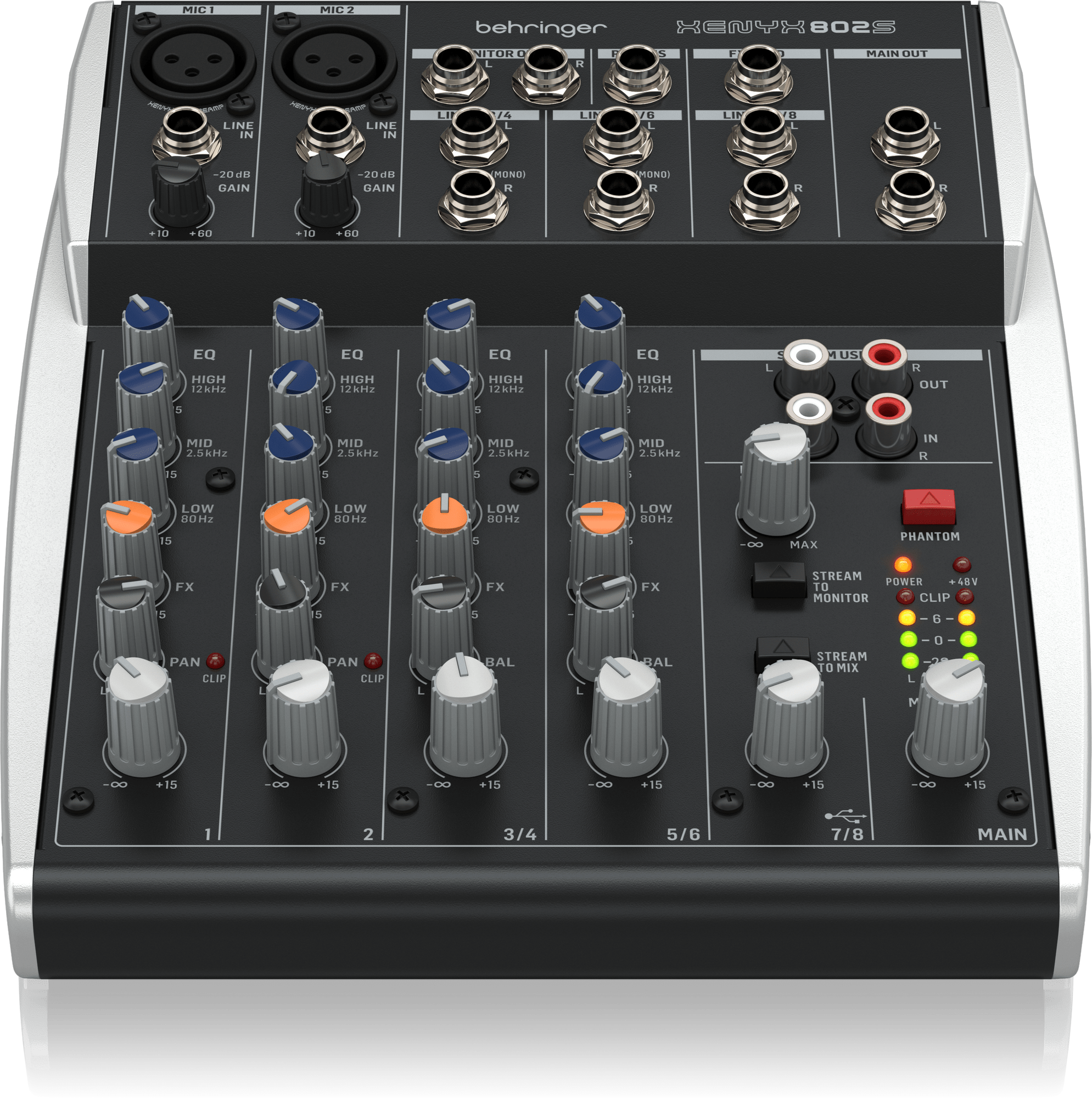

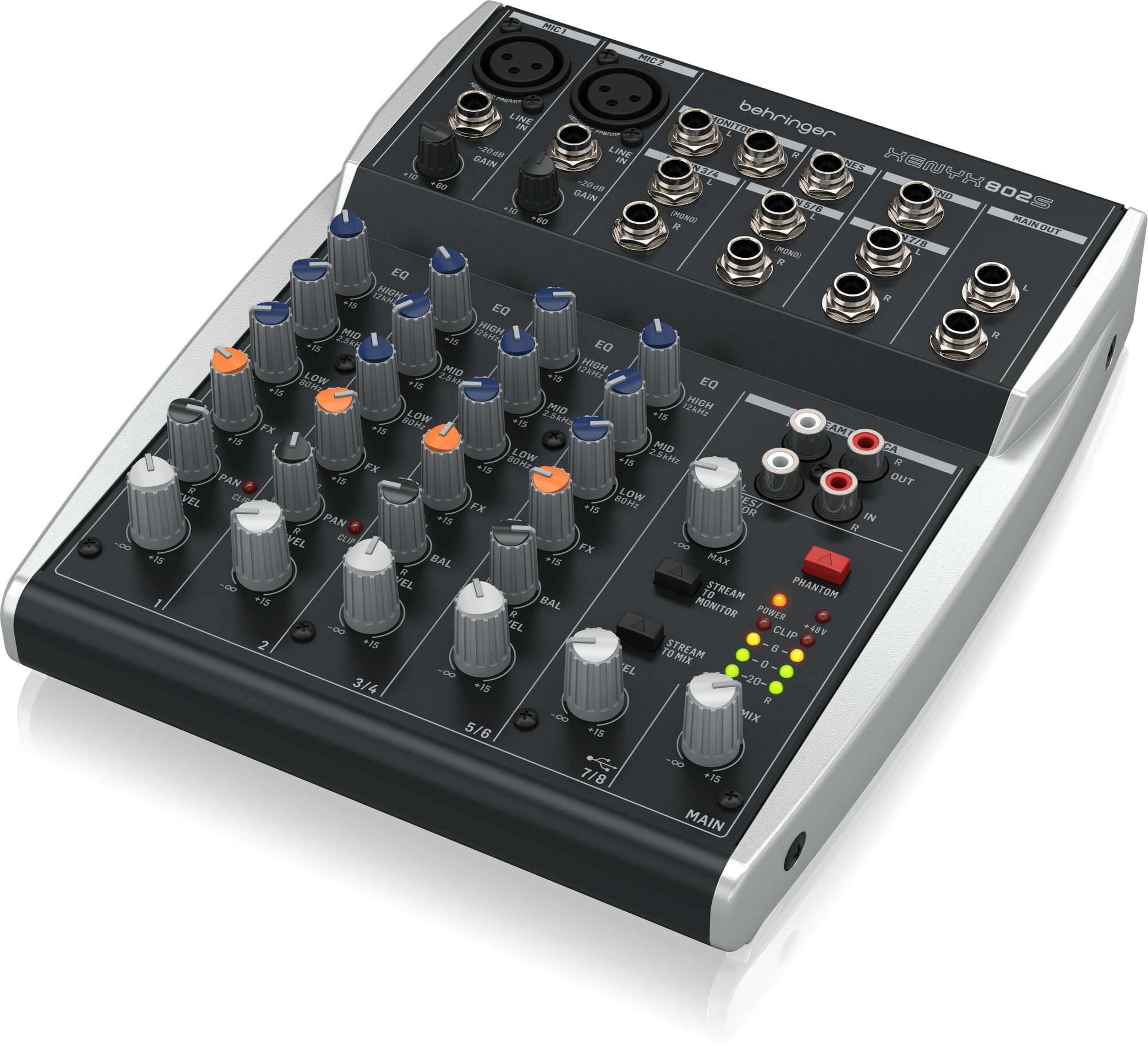

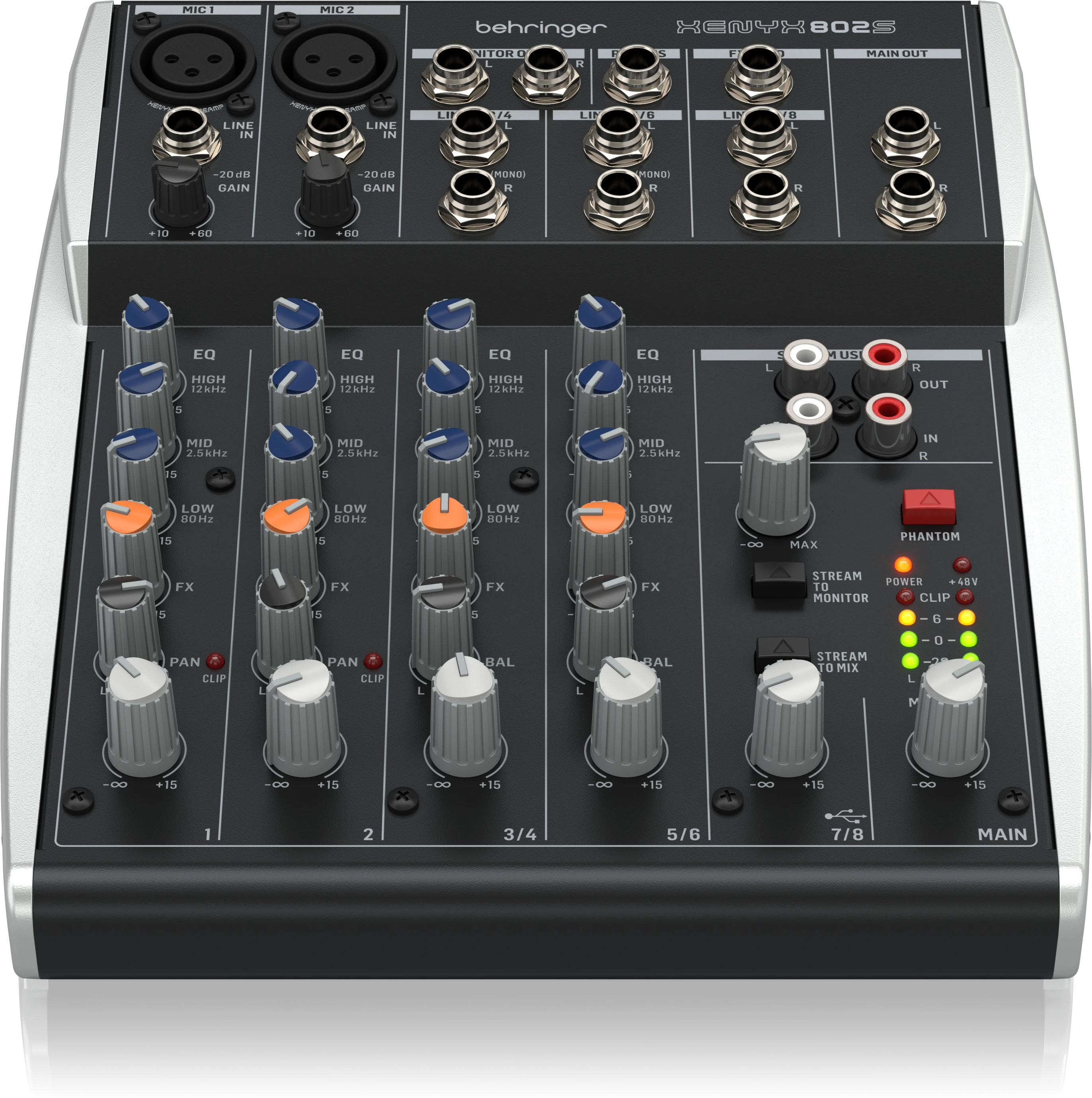

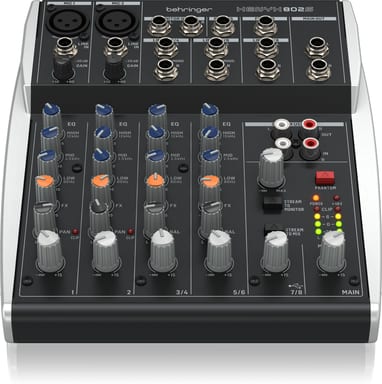

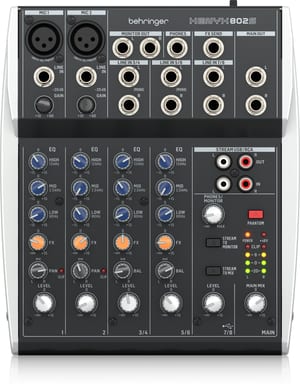

You are live, and everything happens at once. You are talking, the music has to drop and a clip plays from your computer. XENYX 802S puts all of it on one small analogue desk with a USB streaming interface built in. Every level has its own knob. Fix the mix without leaving the conversation.
A voice that stands clear of the music
Your microphone goes into a balanced XLR input. Press the phantom switch for +48 V if it is a condenser. Set the gain so the peaks reach 0 dB on the meter. Then use the 3-band EQ, up to 15 dB of boost or cut, to set your voice over the music.
Give computer audio a channel of its own

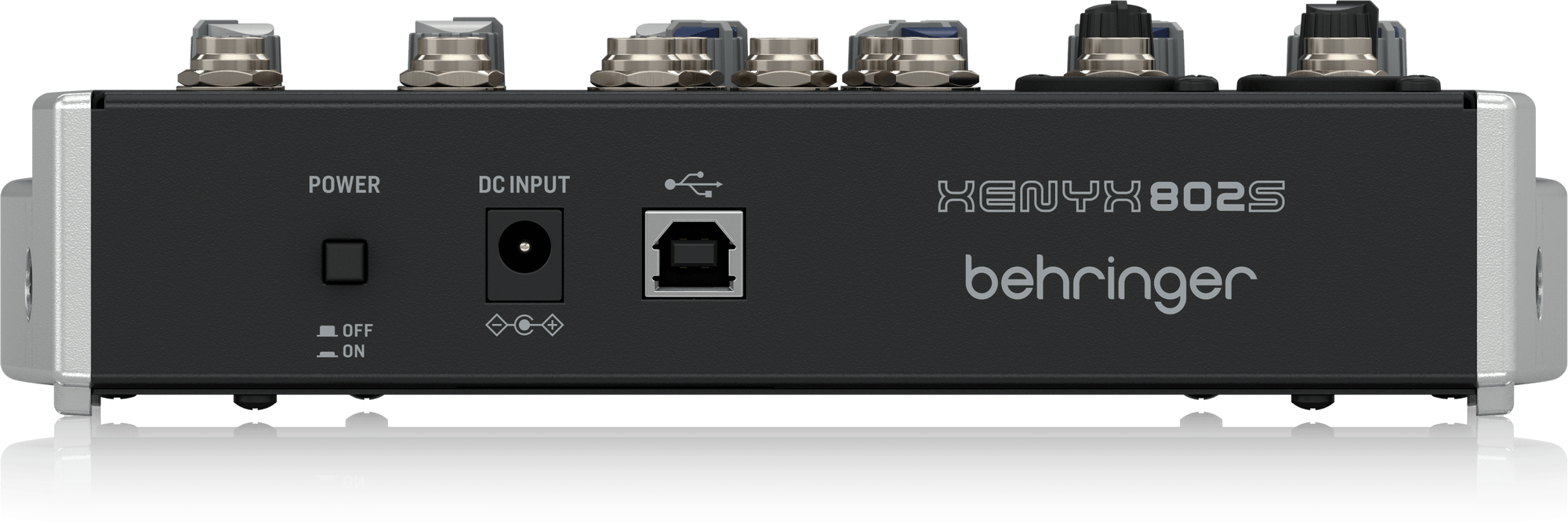

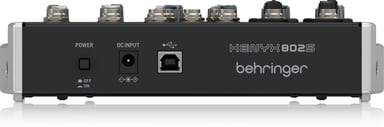

USB carries stereo audio in and out of your computer at 48 kHz, 16-bit, as a UAC2 class compliant device. With STREAM TO MIX off and nothing plugged into channel 7/8, your computer's audio plays there, with its own level. Press STREAM TO MONITOR/PHONES to check it in your headphones. One knob sets both the headphone and monitor level, so your attention stays on the conversation.
