Your stage inputs, a network cable away from the desk.

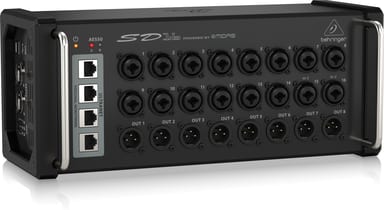

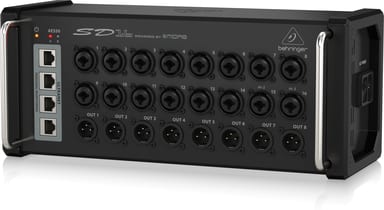

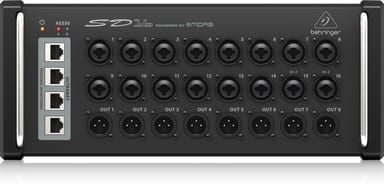

The mixing position is at the far end of the hall, and the band is at the front. The SD16 puts 16 Midas-designed preamps at the stage edge. AES50 links it to the mixer over CAT-5e, for runs up to 100 metres.
Guitar and bass straight in
Inputs 15 and 16 accept high-impedance signals for direct connection of guitars and basses. Every combo input takes XLR or ¼" plugs. Phantom power of 48 V is switchable per input.
Four personal mixers, no extra power supplies
Up to 4 P16-M personal mixers plug into the SD16's ULTRANET ports. The ports power them too.
A digital snake, with or without a console
It is commonly used with an X32 or M32 console, linked over AES50. Used standalone with an S16 or DL16 master unit, gain and phantom power respond to MIDI. A second SD8 or SD16 connects to AES50 port B. Its output switch then picks a different group of 8 channels for its XLR outputs.
