Put four more inputs where the guests are sitting.

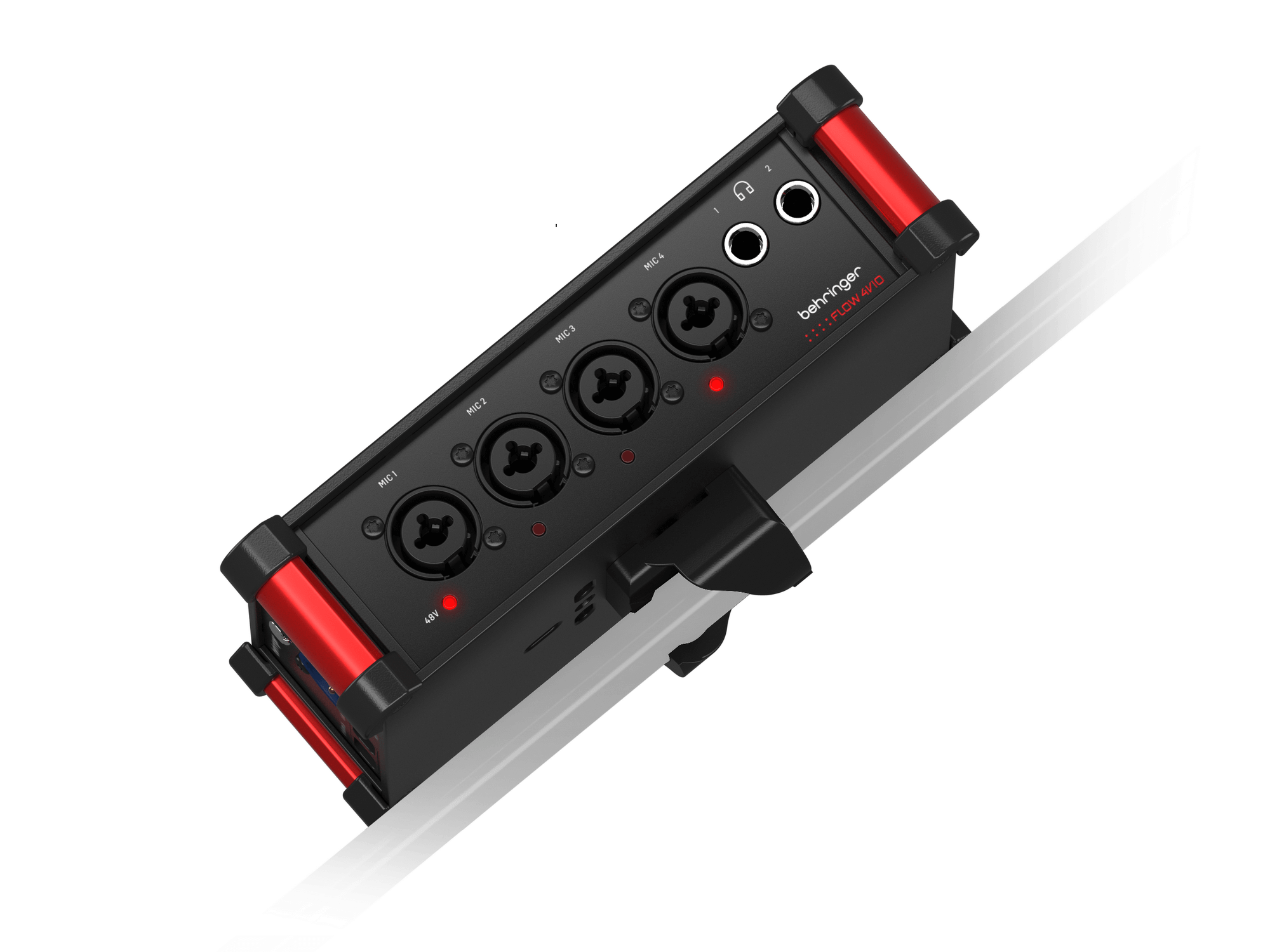

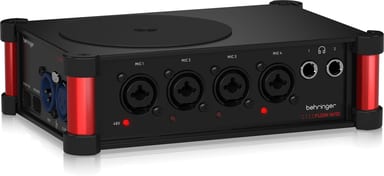

The camera is at the back of the room, and the four voices are at the table. Clip this I/O box to a mic stand beside them. One StageConnect cable carries their microphones to your FLOW 4V and their headphone feeds back.
Preamps that guard against clipping

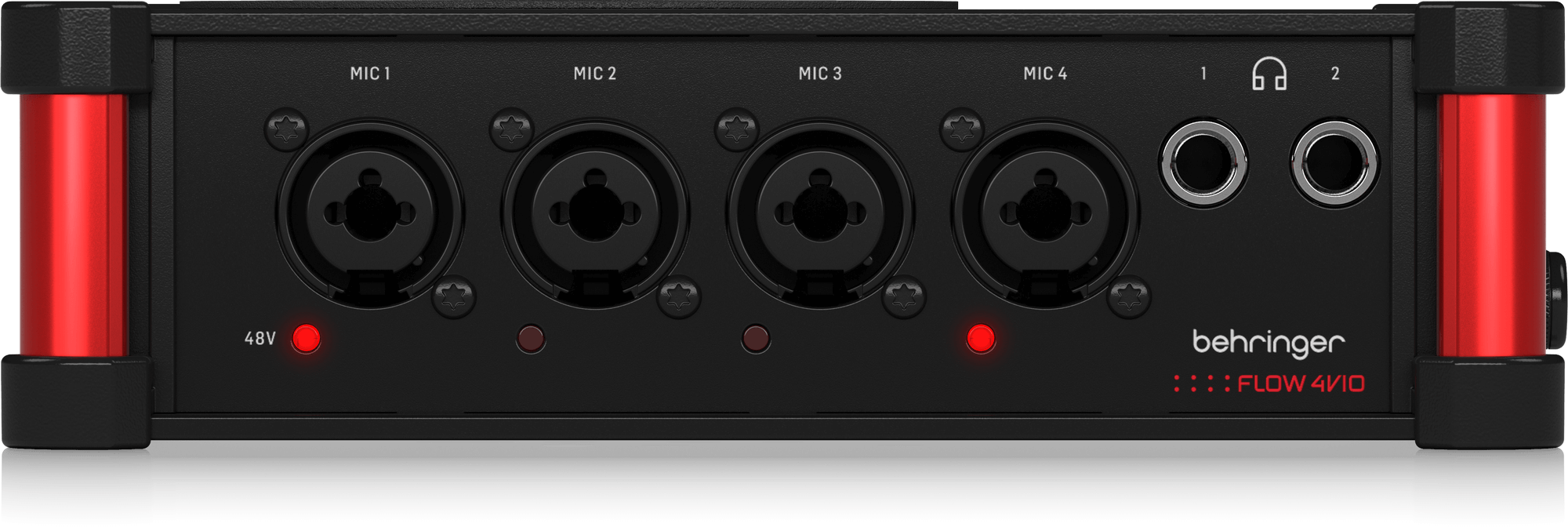

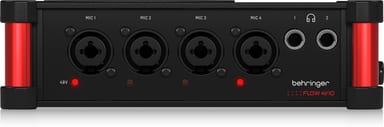

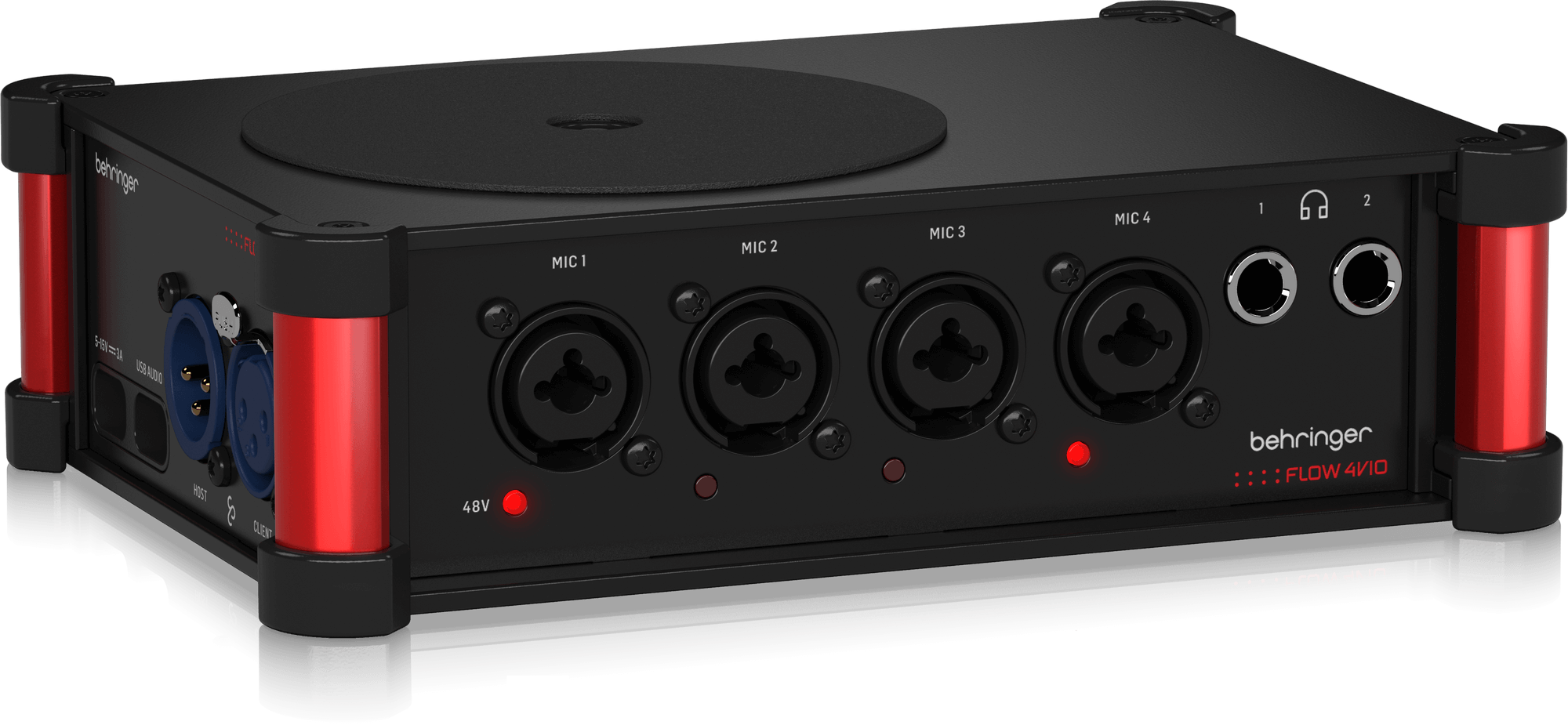

Each XLR/¼" TRS combo input feeds a dual-stage preamp with 142 dB dynamic range. The input circuitry prevents clipping without manual gain adjustments. You can still trim levels digitally. Phantom power is +48 V, switchable. On FLOW 4V, these channels get a filter, tone EQ, a choice of dynamics and delay.
Headphones at the table

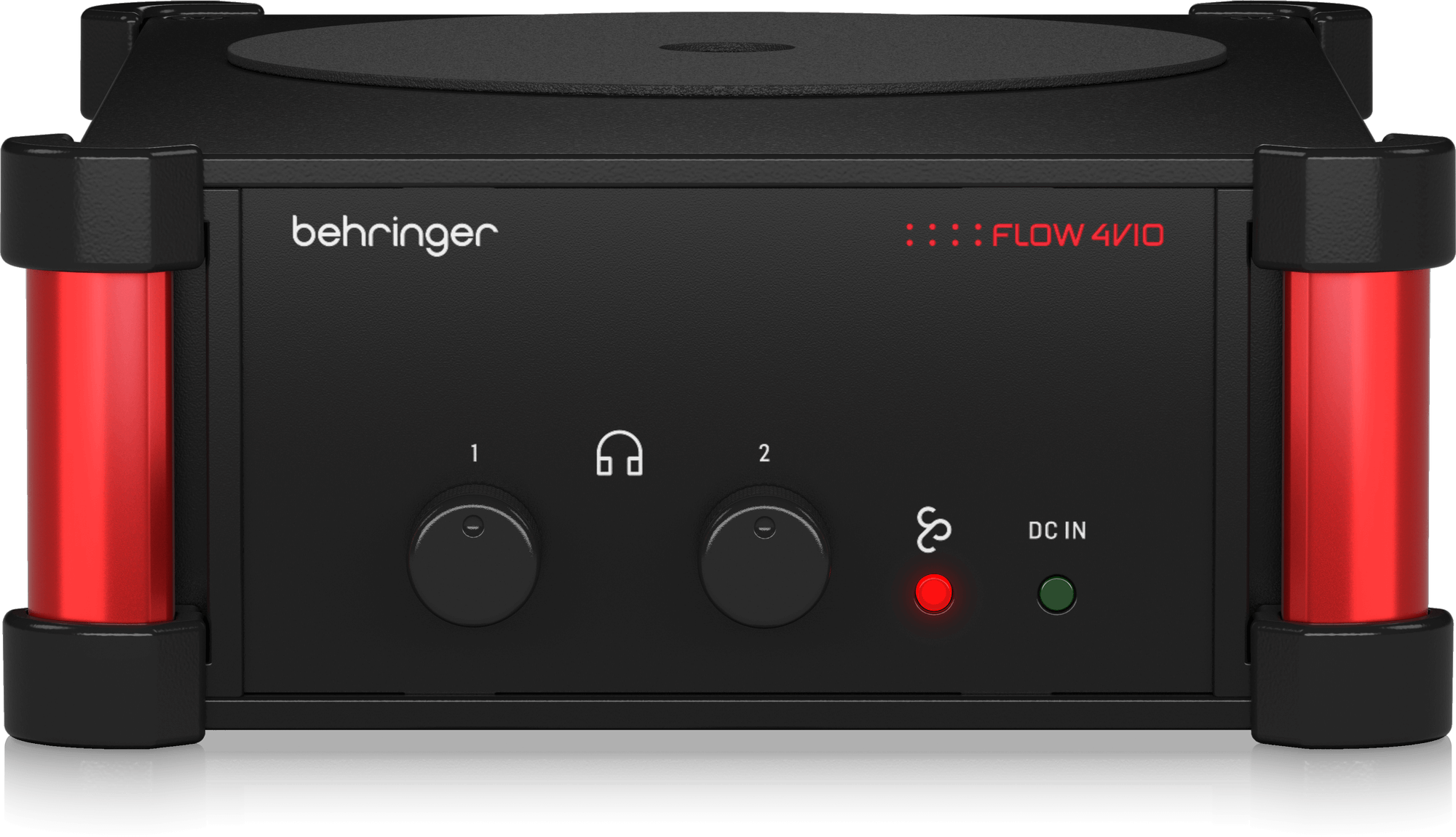

The two ¼" TRS phones outputs each have their own level control. Output 1 mirrors the FLOW 4V STEREO OUT. Output 2 mirrors its PHONES output. A status LED shows the link: green for OK, red for disconnected.
Power at one end only

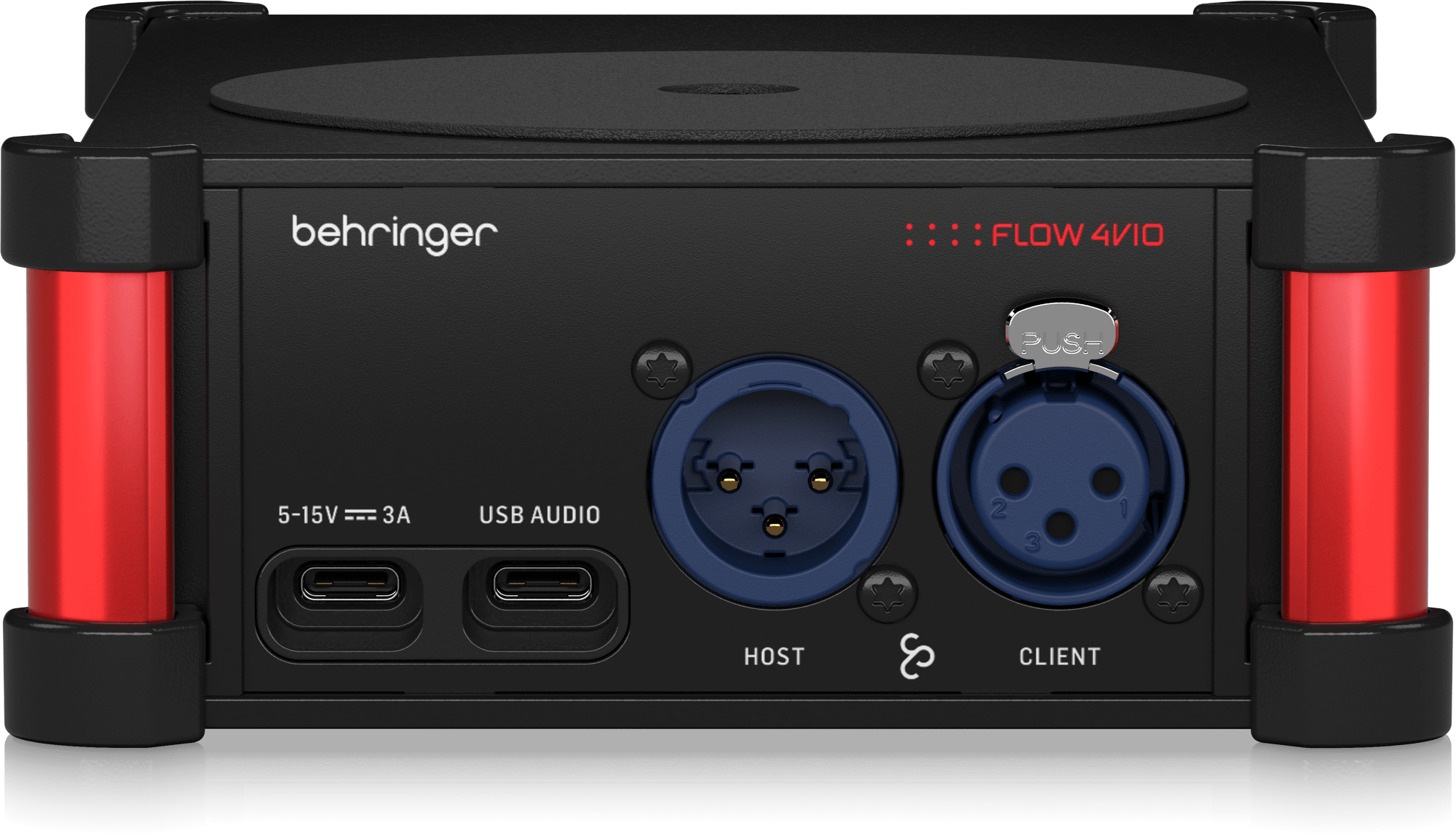

Only one device needs external power. Fed 12 V via USB-PD, the host powers the other over an XLR cable, DMX recommended. StageConnect reaches up to 40 m with 110 Ω DMX cable. On its own, FLOW 4VIO also works as a 4 in/4 out USB audio interface.
